ADJUSTABLE FLOW CONTROL FOR PRECISE PERFORMANCE

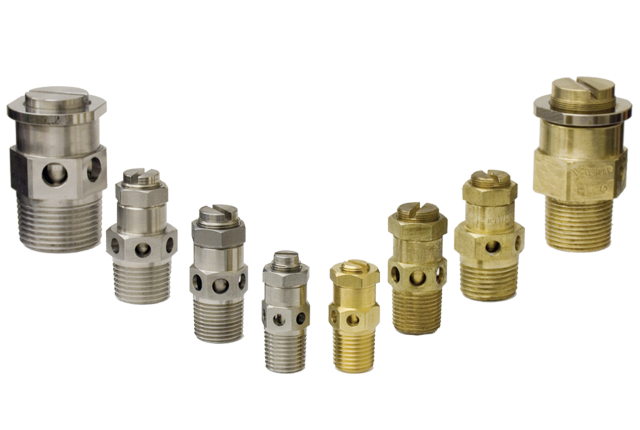

Bleed Control Valves
VERSA Bleed Control Valves provide precise and economical control of pneumatic flow, allowing for adjustable exhaust rates to regulate cylinder speed in compressed air systems. Designed to thread directly into the exhaust port of any VERSA directional control valve, these compact solutions integrate seamlessly into pneumatic circuits, delivering fine-tuned, reliable speed control in both OEM and industrial environments. Ideal for double-acting cylinders, they enable users to independently adjust extension and retraction speeds, thereby maximizing control and system efficiency.
Key Features
VERSA Bleed Control Valves deliver reliable and cost-effective flow control for pneumatic systems. Designed for easy integration, they thread directly into the exhaust port of VERSA directional control valves. Their compact design provides precise, adjustable control over cylinder speed.


Precision Flow Adjustment
A precision-machined needle allows fine-tuning of exhaust flow for accurate speed control.
Secure Locking Mechanism
A built-in lock nut ensures the valve setting stays fixed during operation.
Flexible Port Options
Available in sizes from ⅛” NPT to 1” NPT to fit a wide range of applications.
Durable Material Choices
Offered in brass or 316 stainless steel for superior performance in varied environments.
Wide Pressure Range
Handles pressures from 0 to 200 psi (13.8 bar) for versatile pneumatic control.
Standard Specifications- Brass
| Materials of Construction | Brass body |
| Actuation | Adjustable stem w/lock nut |
| Media |
Air - Inert Gas |
| Port Size / Flow |
Body Ported 1/8" NPT / 0.70 Cv 1/4" NPT / 1.58 Cv 3/8" NPT / 3.5 Cv 1/2" NPT / 3.6 Cv 3/4" NPT / 7.0 Cv 1" NPT / 7.0 Cv |
| Pressure Range (PSI) | 0-200 psi (0-13.8 bar) |
| Temperature Range | -61°F to 300°F (-52°C to 149°C) |
Standard Specifications- Stainless
| Materials of Construction | 316 Stainless Steel Body |
| Actuation | Adjustable stem w/lock nut |
| Media | Air - Inert Gas |
| Port Size/ Flow |
Body Ported 1/4" NPT / 1.58 Cv 3/8" NPT / 3.5 Cv 1/2" NPT / 3.6 Cv 3/4" NPT / 7.0 Cv |
| Pressure Range (PSI) | 0-200 psi (0-13.8 bar) |
| Media | Air - Inert Gas |
| Temperature Range | -61°F to 300°F (-52°C to 149°C) |
