TWO MODULES. ONE POWERFUL SYSTEM.

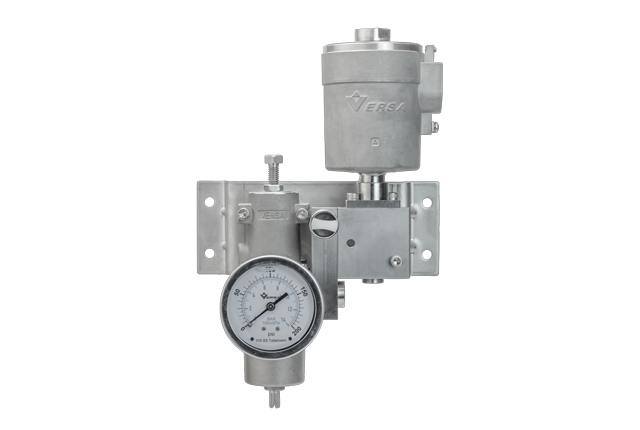

DMAP - Modular Air Package
The VERSA DMAP Series is a compact, modular valve system engineered to streamline your pneumatic control setup by integrating air preparation and control valve functions into one robust, customizable package. Designed for durability and field adaptability, the DMAP Series is ideal for demanding applications that require reliable performance, space efficiency, and ease of maintenance.
The system is built around two core components: an air preparation module and a control valve module. This flexible configuration supports a wide range of installation requirements and allows users to build a solution tailored to their application needs — all backed by VERSA’s legacy of Real World Reliability.
Key Features
The D-316 Series valve is a high-performance high flow direct acting solenoid valve. Designed as a 3-way (3/2), it is a true multipurpose/universal flow valve. A bubble tight valve throughout its complete operating range and cycle life. Suitable for air, natural gas, and hydraulic media.
Modular Design
Two configurable modules — air preparation and control valve — for streamlined integration
- Air Prep Module: Utilizes high-flow AR-316 filter-regulators with options for pressure relief, auto drain, pressure adjustment knob, and tamper-proof locking
- Control Valve Module: Solenoid-operated, direct-acting, 3-way control valve based on proven side-ported design
Customizable Options
Easily configured to meet specific operational and environmental requirements
Durable Construction
Built with corrosion-resistant materials for longevity in harsh environments
Compact Footprint
Ideal for OEM and industrial systems with limited space
Standard Specifications
Regulator Module
| Construction | 316 stainless steel body |
| Seal Material | FKM |
| Actuation | Relieving filter/regulator |
| Media | Air, inert gas |
| Port Size | 1/4” NPT or G1/4 inlet and gauge port |
| Flow | 1.27 Cv with standard 25 micron filter 1.55 Cv with optional 40 micron filter |
| Pressure Range (PSI) | 15 to 150 psi (1.03 to 10.3 bar) |
| Temperature Range | 5 °F to 300 °F (-15 °C to +149 °C) |
Relief Valve
| Construction | 316 stainless steel body |
| Seal Material | FKM |
| Media | Air, inert gas, natural gas |
| Flow | 1.3 Cv |
| Relief Pressure (PSI) | 100 psi (6.90 bar) |
| Temperature Range | -6°F to 300°F (-21°C to 149°C) |
Valve Module
| Construction | 316 stainless steel body |
| Seal Material | FKM |
| Actuation | Solenoid actuated, spring return |
| Media | Air, inert gas and hydraulic |
| Port Size | 1/2” NPT |
| Flow | 0.8 Cv Side Ported |
| Pressure Range (PSI) | 15 to 150 psi (1.03 to 10.3 bar) |
| Temperature Range | -4°F to 194°F (-20°C to 90°C) |
