Application Solution
VMAP Over Pressure Protection
Maintaining the correct pressure in pipelines is essential for system safety and operational efficiency. When pipeline pressure exceeds safe limits, it risks damaging critical infrastructure, leading to ground contamination, environmental harm, and equipment failure. VERSA’s VMAP Over Pressure Protection (OPP) Solution offers a comprehensive, automated approach to prevent these risks by shutting down the pipeline when pressure surpasses the designated threshold.
VERSA’s VMAP OPP integrates vital components into a compact, modular package to ensure reliable over-pressure protection. At the heart of the system is the VERSA pneumatic/hydraulic pressure sensor, a precision device available in either a 3-way block and bleed or 2-way bleed, 2-position configuration. This sensor monitors pipeline pressure in real time and reacts instantly when the setpoint is exceeded, sending a signal to the control valve to shut down the system.

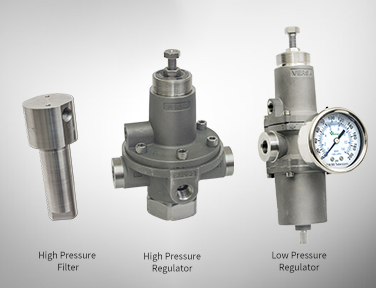

Gas Preparation Module:
Equipped with high pressure filtration and two-stage pressure regulation to provide clean, controlled gas for the system.
Control Valve Module:
Automatically closes in response to sensor signals, with optional manual latching reset and redundancy features for enhanced safety.
Sensor Module:
Detects overpressure events and shuts down the pilot supply to the control valve, preventing system overload.
Why Choose VERSA for Over Pressure Protection?
Complete, Integrated Solutions:
VERSA’s VMAP OPP integrates vital components into a compact, modular package to ensure reliable over-pressure protection. At the heart of the system is the VERSA pneumatic/hydraulic pressure sensor, a precision device available in either a 3-way block and bleed or 2-way bleed, 2-position configuration. This sensor monitors pipeline pressure in real time and reacts instantly when the setpoint is exceeded, sending a signal to the control valve to shut down the system.
Customization and Flexibility:
VERSA offers modular designs with customizable options like block and bleed valves, relief valves, and dual over/under pressure protection.
Real-World Reliability
Crafted from durable 316 stainless steel, VERSA's solution delivers exceptional corrosion resistance and minimizes the risk of material cross-contamination, ensuring long-lasting performance even in the harshest environments.
Cost-Effective and Easy Installation:
Factory-assembled and tested, the VMAP OPP solution reduces potential leakage points and eliminates the need for extensive piping and fittings, resulting in lower material and labor costs.
VERSA’s VMAP OPP over pressure protection system is the trusted choice for industries that require uncompromising performance in pipeline protection.
