ENGINEERED STRENGTH FOR HIGH-PRESSURE CONTROL

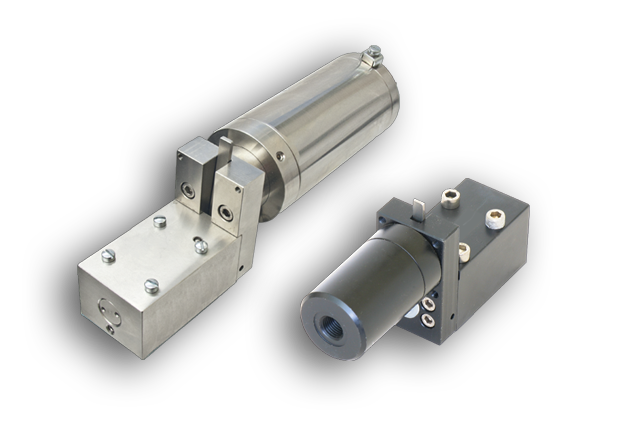

H Series Valves
The H Series is a line of stainless steel or aluminum manifold-mounted valves available in 2-way or 3-way, normally open or normally closed functions. Engineered for low-viscosity fluids—including mineral oils, water-based fluids, compressed air, and natural gas—these leak-proof, high-pressure valves deliver dependable performance in demanding applications.
Standard ratings support hydraulic fluids up to 10.5 gpm (40 l/min), with options for solenoid or pilot actuation. Manual overrides are included as standard, and VERSA’s flexible manifold configurations—both standard and custom—make integration seamless.
Key Features
The VERSA H Series combines high-pressure capacity, leak-proof stainless steel construction, and manifold mounting for reliable performance. With solenoid or pilot actuation, pneumatic service options, and proven use across demanding industries, these valves deliver real-world reliability.
High-Pressure Capability
Rated for hydraulic fluids up to 10.5 GPM (40 L/min) in 2-way and 3-way functions.
Leak-Proof Design
Engineered for secure, consistent performance with low viscosity fluids.
Stainless Steel Construction
Corrosion-resistant and built for harsh and hazardous environments.
Manifold Mounted
Standardized manifold configurations with custom options available.
Versatile Actuation
Solenoid or pilot actuated valves with standard manual overrides.
Pneumatic Service Ready
Add VERSA’s pneumatic service suffix for compatibility with a wide range of gases and flow setups.
Industry Proven
Trusted in oil and gas, mining, steel production, fire-fighting, desalination, utilities, and more.
Standard Specifications- Aluminum
| Construction | Anodized aluminum body |
| Seal Material | Dynamic: Ceramic ball, hardened stainless steel seat. Static Seals: Buna, others available |
| Actuation | Solenoid, pilot, manual |
| Media |
Pneumatic - air, inert gas, natural gas, sour gas (Requires suffix AS or AS1) Hydraulic - mineral and synthetic oils, water, water glycol |
| Port Size | 1/8" to 1" - NPT or G, manifold mounted |
| Flow | Cv to 1.9 |
| Pressure Range (PSI) |
Pneumatic: 0 to 2,900 psi (200 bar). Hydraulic - consult VERSA |
| Temperature Range | -4°F to 176°F (-20°C to 80°C) |
Standard Specifications- Stainless Steel
| Construction | 316 stainless steel body |
| Seal Material | Dynamic: Ceramic ball, hardened stainless steel seat.. Static Seals: Buna, others available. |
| Actuation | Solenoid, pilot, manual |
| Media |
Pneumatic - air, inert gas, natural gas, sour gas (Requires suffix AS or AS1) Hydraulic - mineral and synthetic oils, water, water glycol
|
| Port Size | 1/8" to 1" - NPT or G, manifold mounted |
| Flow | Cv to 1.9 |
| Pressure Range (PSI) |
Pneumatic: 0 to 2,900 psi (200 bar) Hydraulic - 0 to 10,000 psig (690 bar)
|
| Temperature Range | -4°F to 176°F (-20°C to 80°C) |
