    • HIGH FLOW CONTROL WITH MINIMAL POWER DRAW

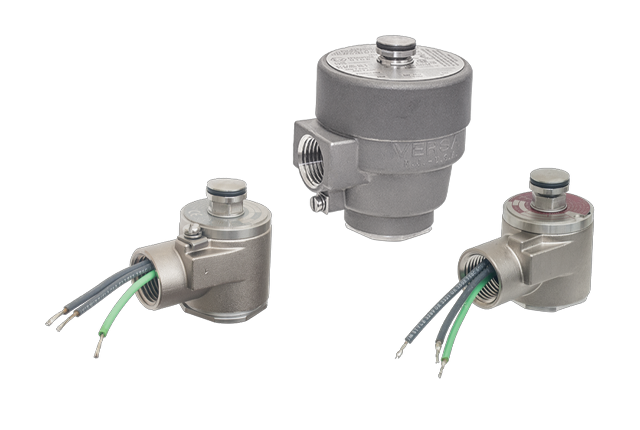

    Low Power Solenoids

    VERSA’s low-power solenoid solutions deliver reliable performance with minimal energy consumption—ideal for remote, sensitive, or power-restricted environments. With options ranging from 7.2W down to an ultra-efficient 0.5W, our solenoids reduce heat generation, support long wire runs, and minimize installation and operating costs without compromising flow or functionality.



    Key Features

    Designed for efficiency and reliability, VERSA’s low-power solenoid valves address the challenges of heat generation, limited power availability, and long wire runs in critical applications. Whether you're working in remote locations or compact enclosures, these solenoids ensure dependable performance with minimal energy consumption.

    Low Power SolenoidsLow Power Solenoids

    Ultra Low Power Consumption
    VERSA solenoids are available in power ratings as low as 0.5W, making them ideal for applications where traditional power sources are limited or unavailable.

    Reduced Heat Generation
    Lower wattage coils produce less heat, helping to maintain system integrity and ambient temperature limits in sensitive environments.

    Remote and Off-Grid Compatibility
    Super low-watt coils can be powered by alternative sources like solar panels or battery packs, enabling flexible installation in remote or off-grid locations.

    Double-Solenoid Detented Options
    Detented valves require only a brief millisecond pulse to shift, drastically reducing power usage while ensuring secure and reliable valve positioning.

    High Flow, Low Power Performance
    The D-Series valves offer generous flow capabilities at just 1.0W of sustained power, delivering high-performance results with minimal energy draw.



    Low Power Solenoids – Package Options
    Power Option Package Suffix ID Description
    0.5 Watt -XV9D (DC ONLY) -D14 Moisture and dust excluder
    -HT Class H coil
    -LZ 0.5 watt, 120 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, continuous duty coil
    -ST Stainless enclosure
    -XX Hazardous location North America 1/2” conduit 24” leads
    -XDBT9D (DC ONLY) -XDBS9D Stainless enclosure integral junction box - terminal strip M20 x 1,5 mm conduit connection
    -D14 Moisture and dust excluder
    -HT Class H coil
    -LZ 0.5 watt, 120 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, continuous duty coil
    -JB-ST Stainless Enclosure
    -XDB Hazardous location - North America, CSAus, ATEX, IECEx, INMETRO, TR CU
    0.85 Watt -XXV4 All Valves (DC Only) -D14 Moisture and dust excluder
    -LA 0.85 watt solenoid 120 psi max
    -PC Potted coil NEMA  4X - protection against ingress of moisture
    -XX Hazardous location North America 1/2” conduit 24” leads
    -XV9C All Valves (DC ONLY) -D14 Moisture and dust excluder
    -HT Class H coil
    -LV 0.85  Watt, 150 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, continuous duty coil
    -ST Stainless enclosure
    -XX Hazardous location North America 1/2” conduit 24” leads
    -XDBT9C All Valves (DC ONLY) -D14 Moisture and dust excluder
    -HT Class H coil
    -LV 0.85  Watt, 150 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, contentious duty coil
    -JB-ST Stainless Enclosure
    -XDB Hazardous location - North America, CSAus, ATEX, IECEx, INMETRO, TR CU
    1.8 Watt -XXN4 All Valves -D14 Moisture and dust excluder
    -LB 1.8 watt solenoid 120 psi max - reduced power consumption
    -PC Potted coil NEMA  4X - protection against ingress of moisture
    -XX Hazardous location North America 1/2” conduit 24” leads
    -XV9 All Valves AC & DC -D14 Moisture and dust excluder
    -HT Class H coil
    -LX 1.8 Watt, 200 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, continuous duty c
    -ST Stainless enclosure
    -XX Hazardous location North America 1/2” conduit 24” leads
    -XDBT9 All Valves AC & DC -D14 Moisture and dust excluder
    -HT Class H coil
    -LX 1.8 Watt, 200 psi max, NEMA 4X, 6P IP 66,67,68 (o-ring sealed), epoxy molded, continuous duty coil
    -JB-ST Stainless Enclosure
    -XDB Hazardous location-North America, CSAus, ATEX, IECEx, INMETRO, TR CU
    7.2 Watt Stainless 9.5 Watt Brass -XXL4 All Valves AC & DC -D14 Moisture and dust excluder
    -PC Potted Coil NEMA  4X - Protection against ingress of moisture
    -XX Hazardous location North America 1/2” conduit 24” leads
