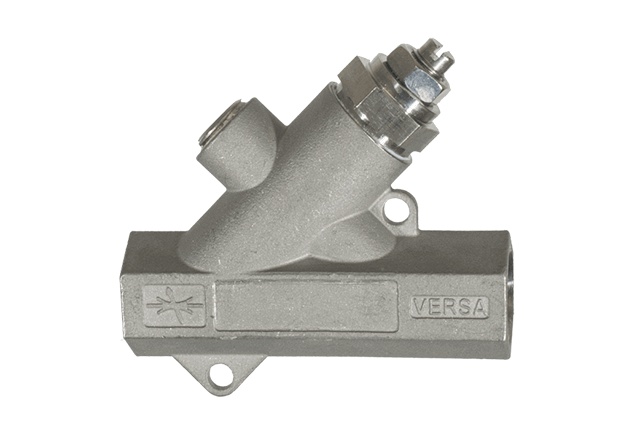

Needle Valve

Precise flow control with the Versa 316 stainless steel needle valve

The Versa needle valve is a 316 stainless steel, NACE compliant device designed to meter flow in a pneumatic circuit.

Key Features

Versa’s Needle Valve is a 316 stainless steel, NACE compliant device designed to meter flow in a pneumatic circuit.  The flow can be gradually adjusted from zero (closed) to maximum (full open, 10 turns). Constant flow can be secured at the required setting by tightening the lock nut.  Flow adjustment is controlled by Versa’s proven needle design from our “Bleed Control” family of products.

Technical Specs

Construction316 stainless steel body, FKM (Fluorocarbon) seals
ServicePneumatic to 400 psi (26.7 bar)
FunctionNeedle Valve
Port Sizes1/4" NPT, 1/2" NPT
Flow2.0 Cv, 5.0 Cv
StyleSide-ported
