Shuttle Valves – Brass

Versa Products > Products > Air & Inert Gas > Shuttle Valves – Brass

Shuttle valves charge and discharge a pressure line or chamber from two or more sources

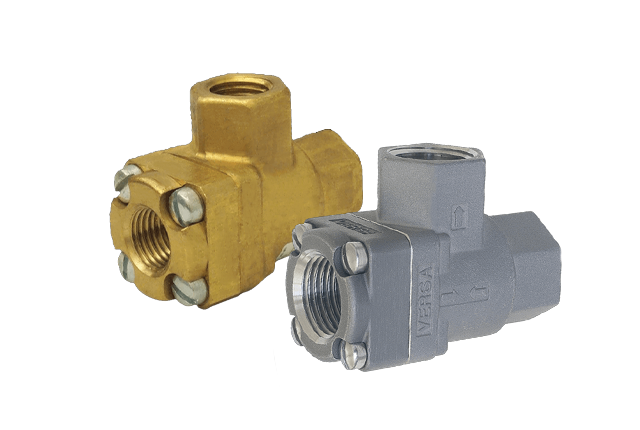

The brass Shuttle Valve is a two inlet, one outlet device utilizing a free moving shuttle which blocks one of two inlet ports while allowing the unblocked inlet port to flow to the outlet.

Key Features

The brass Shuttle Valve is a two inlet, one outlet device utilizing a free moving shuttle which blocks one of two inlet ports while allowing the unblocked inlet port to flow to the outlet.
When a pressure signal is applied to one of the inlet ports, the shuttle shifts blocking off the opposite inlet port and flow goes through the outlet. The shuttle will stay in this condition until the original signal is removed or a higher pressure signal is applied to the opposite inlet port. In logic terms, a shuttle valve is an “OR” function

Technical Specs

ConstructionBrass body, NBR (Nitrile) seals
ServicePneumatic to 200 psi (13.8 bar)
Hydraulic to 500 psi (34.5 bar)
FunctionShuttle Valve
Port Sizes/Flow1/4" NPT/1.8 Cv, 3/8" NPT/4.5 Cv, 1/2" NPT/4.9 Cv, 3/4" NPT/7.3 Cv
StyleSide-ported
