ENGINEERED UPGRADES FOR DEMANDING ENVIRONMENTS

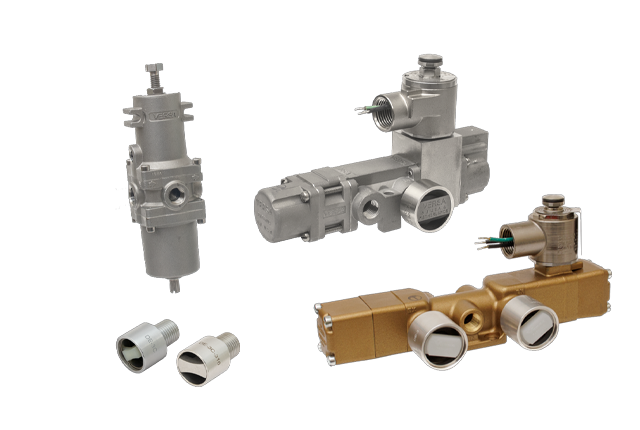

Transitional Reliability Packages
Not all applications are created equal. Many valve failures stem from moisture, debris, or demanding conditions that standard valves aren't built to handle. VERSA offers Transitional Reliability Packages—engineered upgrades and component options that increase protection and performance to match your environment and operating needs.
From ingress protection to internal valve enhancements, these packages help extend valve life, reduce maintenance, and avoid unplanned downtime.
Key Features
VERSA’s Transitional Reliability Packages are designed to enhance valve performance and extend service life in challenging pneumatic environments. Each package combines engineered components and proven materials to protect against wear, contamination, and operating inconsistencies—ensuring dependable valve actuation and reduced downtime.
Filtration
AR-316 stainless steel filter/regulators available in 25, 5, or 40-micron options provide clean, dry air for optimal valve operation.
Dust & Moisture Protection
Dust excluders (-DE) and IP65-rated vents (-DD, -DG) protect exhaust ports from dust and moisture intrusion.
Solenoid Protection
Moisture-resistant coils and the D14 nut guard shield solenoids from contaminants and environmental exposure.
Valve Reliability Packages
Custom options for seals, plating, lubrication, and strong return springs enhance durability and reduce wear.
Power Shift Package
Dual-piston design and super-strong return springs deliver higher shift force for reliable performance in low-cycle or harsh conditions.
Common Transitional Reliability Package Options
| COMBO SUFFIX | SUFFIX ID | DESCRIPTION |
|
Reliability Package -NGS Brass Valves Only |
-S | Strong return spring (minimum pilot pressure 55psi)- extra force for return of spool |
| -155 | Fluorocarbon elastomer- media compatibility | |
| -55F | Molykote silicone grease offers greater adhesion characteristics | |
| -31 | U-cup on pilot piston- reduces friction on return stroke | |
| -10 | Elect nickel plated internal components- decrease Elastomer friction | |
|
Low Temp Reliability -NGST Brass Valves Only |
-NGS | Severe service package list above plus |
| -44 | Low temperature Elastomer package | |
|
Reliability Package -B894 Brass Valves Only |
-S | Strong return spring (minimum pilot pressure 55psi)- extra force for return of spool |
| -155 | Fluorocarbon elastomer- media compatibility | |
| -55C | Krytox grease | |
| -31 | U-cup on pilot piston- reduces friction on return stroke | |
| -10 | Elect nickel plated internal components- decrease Elastomer friction | |
|
Reliability Package -B895 Brass Valves Only |
-155 | Fluorocarbon elastomer- media compatibility |
| -55F | Molykote silicone grease offers greater adhesion characteristics | |
| -31 | U-cup on pilot piston- reduces friction on return stroke | |
| -10 | Elect nickel plated internal components- decrease Elastomer friction | |
| -NGS | Severe service package list above plus | |
| -44 | Low temperature Elastomer package | |
|
Sealed breather vents |
-DG | Cap to exhaust (stainless valves only) |
| -DD | Cap to cap (brass valves only) | |
|
-PWR |
-DP | Double pilot piston |
| -SS | Super strong spring | |
|
-PWRD |
-DD | Cap to cap (brass valves only) |
| -DG | Cap to exhaust (stainless valves only) | |
| -DP | Double pilot piston | |
| -SS | Super strong spring |
Related Products

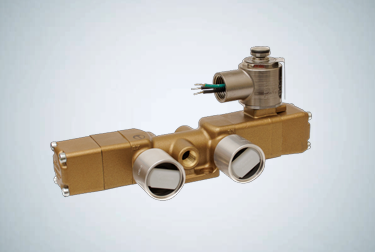

Power Shift Package
