COMPACT, RELIABLE VALVES FOR INDUSTRIAL CONTROL.

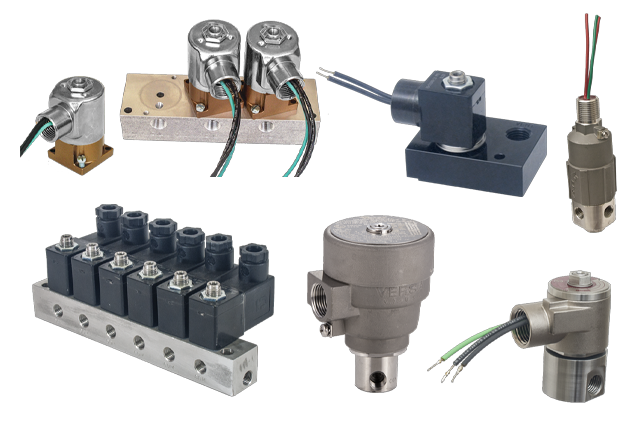

E Series Valves
VERSA’s E Series valves deliver reliable directional control in a compact, modular design—ideal for both pneumatic and low-pressure hydraulic applications. Available in 2-port and 3-port, 2-position configurations, the E Series includes side-ported models with 1/8" to 1/4" NPT connections and manifold-mounted versions supporting up to 10 stations. Designed for flexibility, the E Series offers a wide range of electrical connections, venting options, and seal materials to suit demanding environments. With bubble-tight sealing, high-performance solenoids, and rugged aluminum or stainless-steel construction, these direct-acting valves are engineered for long life, fast installation, and real-world reliability.
Key Features
VERSA’s E Series valves are packed with features that support efficient performance, simplified installation, and long service life. From versatile mounting options to rugged construction and bubble-tight sealing, every detail is engineered to meet the demands of real-world pneumatic and low-pressure hydraulic applications.
Reliable Directional Control
The E-Series includes 2-port, 2-position and 3-port, 2-position direct-acting valves, ideal for both pneumatic and low-pressure hydraulic applications.
Flexible Mounting Options
Available in side-ported or manifold-mounted configurations, the E-Series adapts easily to different system layouts and space constraints.
Compact Design
With body port sizes ranging from 1/8” to 1/4” NPT, the side-ported valves are compact and individually mounted, making them ideal for space-limited applications.
Manifold-Ready Performance
Manifold-mounted versions feature direct solenoid actuation and support up to 10 valve stations, allowing for fast and efficient multi-valve installations.
Simplified Piping
Manifolds include threaded ports for inlet and exhaust, enabling common connections and minimizing the need for individual pipe breaks during installation or maintenance.
Quick Installation & Maintenance
Valves can be installed or removed quickly without disturbing existing pipe connections, helping reduce system downtime and service time.
Standard Specifications
|
Construction |
Aluminum or Stainless steel |
| Seal Material | NBR/nitrile |
| Actuation | Solenoid |
| Media | Air, oil, water |
| Port Size | 1/8" NPT or 1/4" NPT, side ported or manifold mounted |
| Flow | Cv to 0.79 |
| Pressure Range (PSI) | 0 to 500 psig (35 bar) |
| Temperature Range | 0°F to 180°F (-18°C to 82°C) |
