RUGGED, RELIABLE, AND CERTIFIED FOR DEMANDING APPLICATIONS

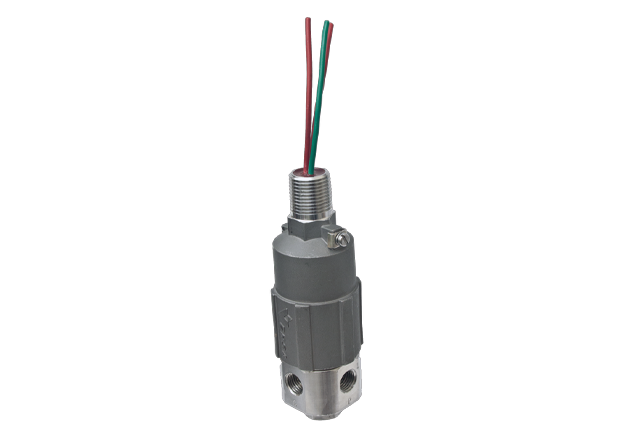

E3 Series Valves
VERSA’s E3 Series is a compact, inline 3-way solenoid valve engineered for reliable performance in the harshest conditions. Constructed with a stainless steel valve body and coil housing, the E3 offers exceptional corrosion resistance and is factory sealed for hazardous location service. Certified for use worldwide, it’s ideal for controlling air, gas, oil, or water. With a male inline conduit hub for simplified installation and a super low watt option for power-sensitive applications, the E3 Series delivers real-world reliability where it matters most.
Key Features
VERSA’s E3 Series solenoid valves are purpose-built to perform in extreme conditions. From hazardous locations to power-limited installations, the E3 delivers dependable operation, corrosion resistance, and simplified integration—all in a compact, rugged design.
Corrosion-Resistant Stainless Steel
Valve and coil housings are constructed from stainless steel to withstand harsh, corrosive environments.
Hazardous Location Rated
Factory sealed and certified for hazardous locations, with worldwide approvals for safe, compliant operation.
Compact Inline Design
¼” NPT 3-way configuration provides a space-saving footprint for efficient system integration.
Easy Installation
Equipped with a male inline conduit hub for quick and secure electrical connections.
Super Low Watt Option
Available in an energy-saving model for applications where power is limited or critical.
Standard Specifications
| Construction | 316 Stainless Steel |
| Seal Material | FKM |
| Actuation | Direct Acting Solenoid |
| Media | Air, gas, hydraulic |
| Port Size | ¼” NPT Inlet, Outlet & Exhaust |
| Flow | 0.06 to 0.16 Cv |
| Pressure Range (PSI) | 0-150 psi (0-10.3 bar) |
| Temperature Range | -4°F to 122°F (-20°C to 49°C) |
| Coil rating | Class F, Continuous duty |
| Power | 1.86 watts |
| Connections | ½” npt, male hub with 72 inch wire leads, 3 wire. |
| Ingress protection | IP 66/67 NEMA 4X, 6P |
