COMPACT POWER, UNMATCHED RELIABILITY
EZ Series Valves

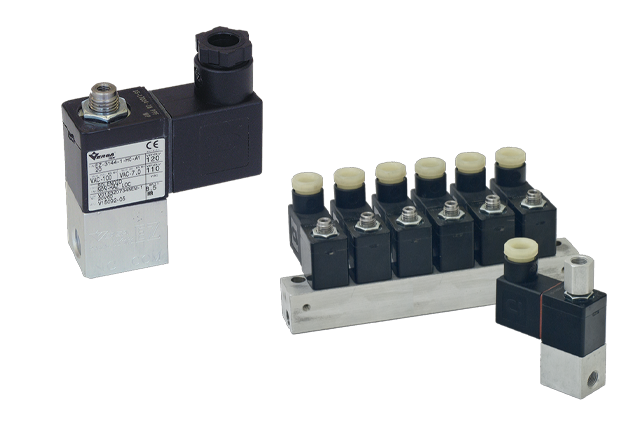

VERSA’s EZ Series valves are compact, direct solenoid actuated valves designed for space-sensitive applications without compromising performance. As the smallest in the Series E family, these individually mounted valves feature 1/8” NPT ports and deliver reliable, precise control. For higher-density configurations, the EZ Multiple Manifold option integrates 2 to 10 identical valve cavities into a single body—ideal for streamlined installations and consistent operation.
Key Features
VERSA’s EZ Series valves deliver reliable solenoid control in a small footprint, making them ideal for space-constrained applications without sacrificing functionality.
Space-Saving Design
The smallest valve in the Series E family, the EZ Series features a compact form factor with 1/8” NPT ports for tight installations.
Direct Solenoid Actuation
Fast-acting, direct solenoid control ensures precise valve operation for demanding pneumatic applications.
Individually Mounted Configuration
Each valve is individually mounted for flexible placement and easy serviceability in single-valve setups.
EZ Bantam Multiple Manifold Option
Integrates 2 to 10 identical valve cavities into one streamlined assembly to simplify plumbing and save space.
Reliable Performance
Built to VERSA’s Real World Reliability standards, the EZ Series offers long-lasting, consistent operation in industrial environments.
Standard Specifications-
|
Construction |
Aluminum |
| Seal Material | FKM |
| Actuation | Solenoid |
| Media | Air, Oil, Water |
| Port Size | ⅛” NPT |
| Flow | 0.022 to 0.26 Cv |
| Pressure Range (PSI) | Vacuum - 500 |
| Temperature Range | 0°F (-18°C) to 180°F (82°C) |
| Exhaust/ vent | Vent to atmosphere, #10-32 thread |
| Coil rating | Class F, continuous duty |
| Power | 8.5 - 10 .5 Watts |
| Connections | DIN standard |
