COMPACT, RELIABLE VALVES FOR INDUSTRIAL CONTROL.

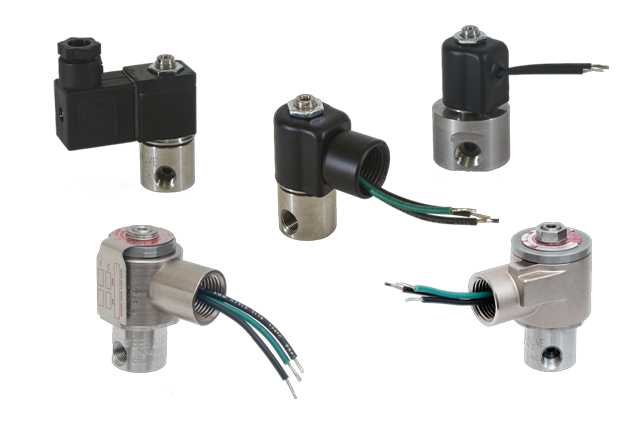

E5 Series Valves
eries E5 compact valves are direct-acting, solenoid-actuated valves built for applications where space is limited. Smaller than full-size Series E valves, they offer many of the same orifice sizes and operating pressure ranges in a more compact design. Each valve features 1/8" NPT body ports and is individually mounted, making the Series E5 a reliable solution for tight pneumatic assemblies and panel installations.
Key Features
Designed for demanding industrial service, these compact direct-acting solenoid valves deliver dependable performance across a wide range of pressures, media, and configurations. With operating pressures up to 500 psi and multiple function options, they provide a practical solution for directional and multi-purpose control in tight spaces.
Multiple Function Configurations
Available in 2-way normally closed, 2-way normally open, 3-way normally closed, and 3-way normally open configurations. Ideal for directional control and general-purpose pressure applications where versatility is required.
Broad Performance Range
Supports pressures up to 500 psi with flow capacities from 0.022 to 0.26 Cv. Suitable for air, oil, and water service across temperature ranges from 0°F to 180°F (-18°C to 82°C).
Built for Industrial Environments
430 stainless steel body construction with optional 316 stainless steel upgrade. NBR seals standard. Epoxy-molded Class F continuous-duty coils with optional Class H rating. Available in General Purpose and Hazardous Location models, including NEMA 7, 9, 4/4X with FM and ATEX approvals.
Flexible Electrical and Mounting Options
AC or DC voltages available. 8.5–10.5 watt power consumption. 1/8” or 1/4” NPT inlet and outlet ports with vent-to-atmosphere exhaust (#10-32 thread). Compact body design with threaded mounting holes and optional bracket (-WMA) for simplified installation.
Standard Specifications
|
Construction |
430 Stainless steel |
| Seal Material | NBR (Nitrile) |
| Actuation | Solenoid |
| Media | Air, Oil, Water |
| Port Size | 1/8" NPT or 1/4" NPT, side ported |
| Flow | Cv to 0.26 |
| Pressure Range (PSI) | to 500 psi |
| Temperature Range | 0°F to 180°F (-18°C to 82°C) |
| Exhaust/ vent | Vent to atmosphere, #10-32 thread |
| Coil rating | Class F, continuous duty (Class H optional) |
| Power | 8.5 - 10.5 watt |
| Connections | ½” NPT |
| Ingress protection |
General Purpose NEMA 1, 2,3 & 4/4X Hazardous Location NEMA 7, 9, 4/4X, FM & ATEX |
