VA3-24-F1RY-XV9-000933
¼” Valve Package for Single Acting Actuator with Over Pressure Protection with a Remote Pilot Solenoid Latching Valve
VA3-24-F1RY-XV9-000933
The VERSA Modular Air Package (VMAP) is a compact air management system that provides a full range of pneumatic accessories and functions to meet the needs of most control systems in the actuator control industry. VMAP offers a standard selection of pre-designed solutions, with the flexibility to create assemblies tailored to your application, including the full range of coils and operators based on the field-proven V-316 Series. VMAP simplifies the design process by combining all common circuit components into one integrated assembly.
Get in touch with us today to learn more or contact your local distributor for assistance.
Key Features
- 316 Stainless Steel Construction: Built to withstand harsh environments and ensure long-term durability.
- Compact and Lightweight: Optimized size and weight make installation easier and more efficient.
- Reduced Leak Points: Fewer connections minimize potential leak paths, improving reliability.
- Flexible Mounting: Can be installed in any orientation, with standard threaded mounting holes or an optional bracket for versatility.
- Cost and Labor Savings: Reduces the need for additional fittings, tubing, and labor, lowering overall installation costs.
- 100% Tested: Every assembly undergoes rigorous testing to ensure top performance.
- Long-Term Confidence: Backed by a 10-year warranty on the entire circuit, offering peace of mind.

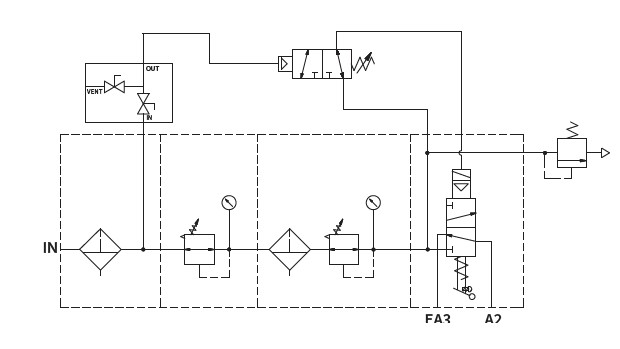

Flow Schematic
Dimensional Drawing
Component Specs
High Pressure Filter Assembly:
Part Number:
AFHA-3321-316-BB1-VA
Actuator(s):
Air Filter With Polyethylene Element, Top/Side Ports & Manual Drain
Function:
Filter
Body:
Body Ported, 1/4" NPT
Pressure Range:
0-1600 psi, 0-110.3 bar
Flow:
0.69 Cv
Media:
Air - Inert Gas | Natural Gas
Temperature Rating:
-4°F to 212°F, -20°C to 100°C
Repair Kit:
AFH-090-105-25-RK
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Filter:
25 Micron Polyethylene
Weight:
3.88 lb, 1.76 kg
High Pressure Filter Assembly:
Part Number:
ARHB-3322-316-GAG-VA
Actuator(s):
Non-Relieving Regulator
Function:
Relieving
Body:
Body Ported, 1/4" NPT
Pressure Range:
50-150 psi, 3.45-10.3 bar
Flow:
0.14 Cv
Media:
Air - Inert Gas | Natural Gas
Temperature Rating:
5°F to 149°F, -15°C to 65°C
Repair Kit:
ARH-RK
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Filter:
40 Mesh Stainless Steel
Weight:
4.88 lb, 2.21 kg
Filter / Regulator Assembly:
Part Number:
ARFA-3111-316-GAG-VA
Actuator(s):
Relieving Filter/Regulator-NACE Compliant
Function:
Relieving
Body:
Body Ported, 1/4" NPT
Pressure Range:
15-150 psi, 1.03-10.3 bar
Maximum Supply Pressure:
290 psi
Flow:
2.1 Cv Flow value is without filter element
Media:
Air - Inert Gas | Natural Gas
Temperature Rating:
5°F to 149°F, -15°C to 65°C
Repair Kit:
AR-RK-1
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Filter:
25 Micron Stainless Steel
Weight:
3.4 lb, 1.54 kg
V-316 Series Directional Control Valve
Valve Specifications
Part Number:
VAG-3301-316-181D-C674-VB-D024
Description:
V-316 Series Directional Control Valve
Title:
Valve, 3-Way, SST, 24VDC
Actuator(s):
Solenoid-Pilot \ Hand Lever-Latch on Spring Return
Function:
3-way, 2-position, Normally Closed
Body:
Body Ported, 1/4" NPT
Pressure Range:
VAC-175 psi, VAC-12.1 bar
Flow:
1.8 Cv
Media:
Air - Inert Gas | Natural Gas
Temperature Rating:
-4°F to 189°F, -20°C to 87°C
Repair Kit:
V-4302-316
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Weight:
8.94 lb, 4.05 kg
Solenoid Specifications
Description:
Hazardous Location - E4 Class XV Option
Operating voltage:
24 V DC ±10%
Power (nominal):
1.8 W
Inrush:
75 mA
Holding:
75 mA
Resistance:
320 Ω
Solenoid Ingress Protection:
NEMA 4X & 6P, IP66 / 67 / 68
Coil class:
H
Duty cycle:
Continuous Duty
Protection:
Cl I, Grps B,C,D - Cl II, Grps E,F,G - Cl III
Zone:
Zone 1
T rating (gas):
4
Certification:
cCSAus
Replacement operator:
E4-3198-33XV-HT-LX-D024
Materials of Construction:
Solenoid housing material:
Stainless Steel - Plated
Solenoid seal material:
FKM
Coil:
Epoxy Molded
Solenoid connection:
1/2" NPT female conduit with 24" wires
Stainless Steel Pressure Relief Valve:
Part Number:
RV-3-316-100
Title:
Relief Valve (1/4" NPT), SST
Actuator(s):
Relief pressure set at factory
Function:
Pressure Relief
Body:
Body Ported, 1/4" NPT
Pressure Range:
100 psi, 6.90 bar
Flow:
1.3 Cv
Media:
Air - Inert Gas | Natural Gas
Temperature Rating:
-6°F to 300°F, -21°C to 149°C
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Weight:
0.16 lb, 0.07 kg
Stainless Steel Pressure Sensor:
Part Number:
BAA-8302-913-AB
Title:
Pressure Sensor, Single Unit
Actuator(s):
Block and Bleed Pilot with Automatic Reset - adjustable pilot range
Function:
Selector (2 inlets-1 outlet), 2-position [8-way]
Body:
Body Ported, 1/4" NPT
Pressure Range:
10-150 psi, 0.70-10.3 bar
Flow:
0.12 Cv
Media:
Air - Inert Gas | Natural Gas | Hydraulic
Pilot Range:
200-1500 psi, 13.8-103 bar
Temperature Rating:
5°F to 248°F, -15°C to 120°C
Materials of Construction:
Body:
Stainless Steel - Type 316L
Seals, Valve Proper:
FKM
Weight:
4.88 lb, 2.21 kg
