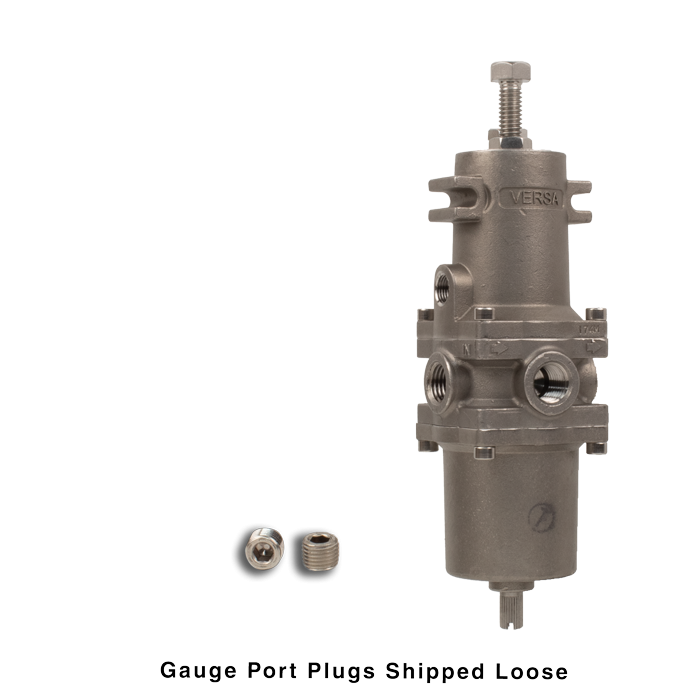

Filter Regulator, 1/4"NPT, Coalescing, SST
SKU:
ARFC-3412-316
Lead time: 10
Filter Regulator, 1/4"NPT, Coalescing, SST
Summary
Filter / Regulator Assembly
The VERSA ARII-316 Series stainless steel regulators stand up to the harshest environments while providing highly accurate pressure regulation. The proven 316 stainless steel housing, filter assemblies, and fluorocarbon diaphragm construction make the AR-316 compatible with sour gas and adaptable to offshore environments.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Air Prep, Filter-Regulator |
|---|---|
| Actuation | Relieving Filter/Regulator-Nace Compliant |
| Port Size | Body Ported, 1/4" NPT |
| Maximum Supply Pressure (PSI) | 290 |
| Differential Pressure (PSI) | 0.0000 |
| Valve Pressure Range (PSI) | 10-100 psi |
| Valve Pressure Range (BAR) | 0.70-6.90 bar |
| Primary Flow | 0.80 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | 5°F to 302°F |
| Temperature Range (C) | -15°C to 150°C |
| Seal Material | FKM |
| Body & Internal Parts | 316L Stainless Steel |
| Filter Element | 25 Micron Polyethylene |
