Air Gauge, 2.5" DIA, 0-100 PSI, Dry
SKU:
ARG-100
Lead time: 20
Air Gauge, 2.5" DIA, 0-100 PSI, Dry
Summary

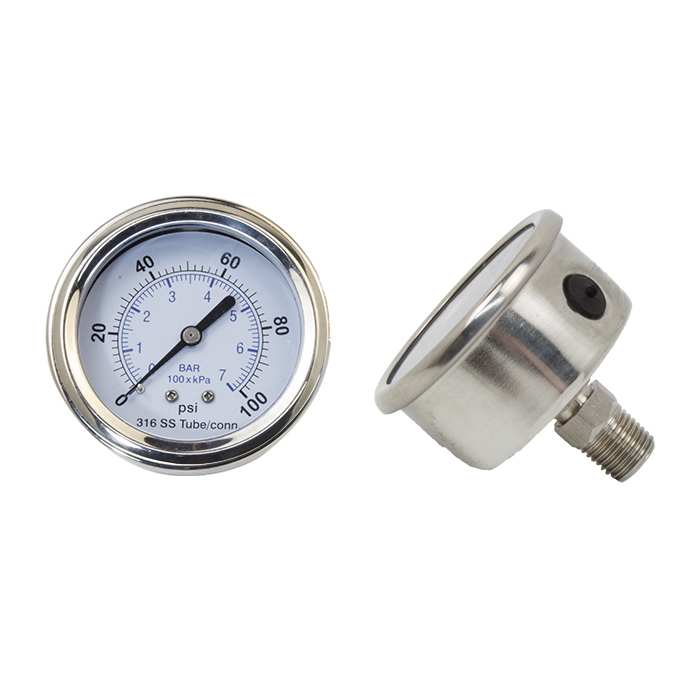

Stainless Steel Pneumatic Gauge
The VERSA Pressure Gauge includes a stainless steel case with a 1/4 inch NPT connection (male thread) center back. Available in 2" and 2.5" diameters. Option for glycerine filled.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Acc, Gauges |
|---|---|
| Actuation | Air pressure |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-60 psi |
| Valve Pressure Range (BAR) | 0-4.14 bar |
| Media | Air - Inert Gas, Hydraulic, Natural Gas, Water |
| Temperature Range (F) | -4°F to 151°F |
| Temperature Range (C) | -20°C to 66°C |
| Seal Material | None |
| Body & Internal Parts | 316 Stainless Steel |
