Valve, 3-Way, Alum
SKU:
BAA-3308-550RAB
Lead time: 10
Valve, 3-Way, Alum

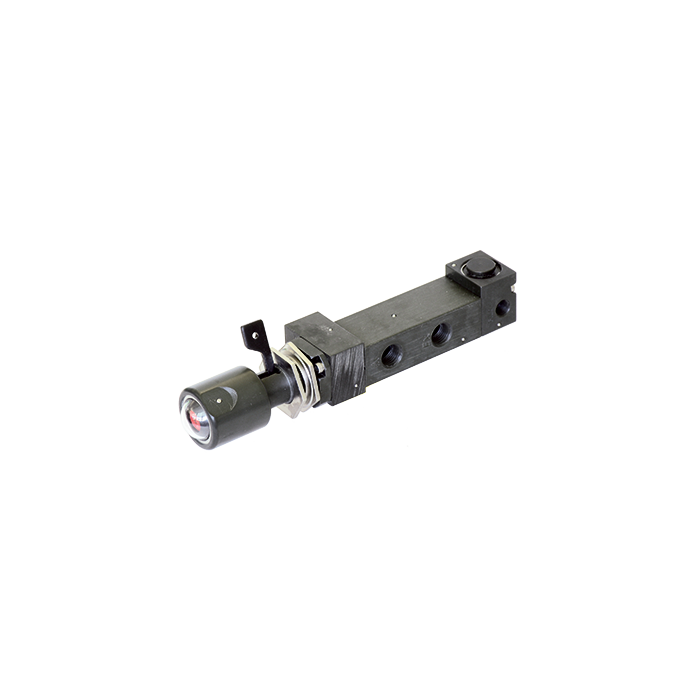

Indicating Relay Valve
The VERSA aluminum Indicating Relay Valves monitor the pilot actuators of the main supply relay valves. The indicating relays have two functions. First, to visually show on a panel that a circuit malfunction has occurred. Secondly, to quickly cause operating pressure to exhaust from the system through the main supply relay valve, allowing a valve operator or pneumatic system to shut down.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Indicating Relay (First Out)-Receiving Type With Integral Bypass |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 15-120 psi |
| Valve Pressure Range (BAR) | 1.03-8.27 bar |
| Primary Flow | 1.1 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | 5°F to 300°F |
| Temperature Range (C) | -15°C to 149°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.020000 |
