Valve, 3-Way, SST, 24VDC
SKU:
BAA-3327-957A-HC-D024
Lead time: 10
Valve, 3-Way, SST, 24VDC

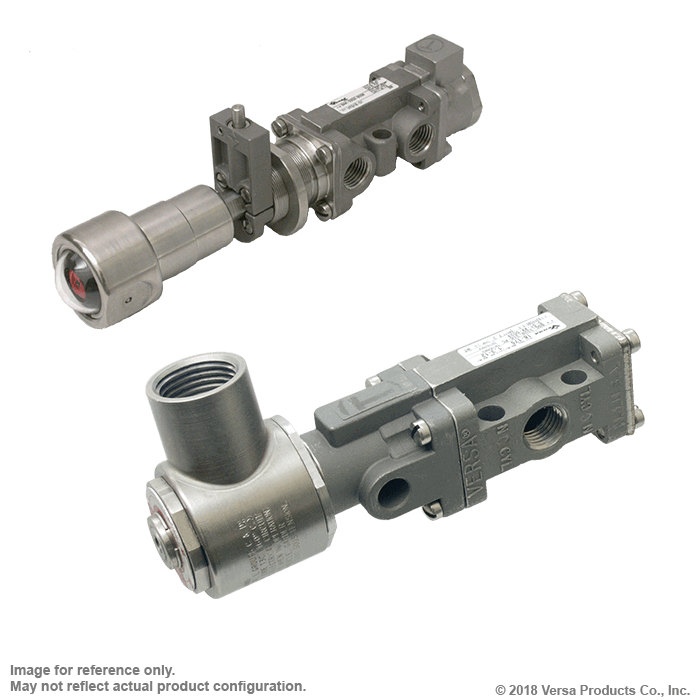

B-316 Series Directional Control Valve
The VERSA B-316 Series is a complete line of compact, rugged three-way (3/2), side-ported valves constructed of 316 stainless steel which conforms to NACE standard MR-01-75. They are designed for use in corrosive environments and to control a variety of aggressive media as well as air. The B-316 Series is the pneumatic leader for use in process control, wellhead and safety shutdown systems.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: DIN Connector with PG9 cord grip
100% Leak Tested • 10-Year Warranty
| Actuation | Latch-Reset With Button (Shift Toward Button Latches) | Solenoid-Pilot Spring Return |
|---|---|
| Function | 3-way, 2-pos, NO |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 50-175 psi |
| Valve Pressure Range (BAR) | 3.45-12.1 bar |
| Primary Flow | 1.1 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 104°F |
| Temperature Range (C) | -20°C to 40°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 1.840000 |
| Solenoid Description | GP - E5 Class HC Option |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 10.5 W |
| Inrush Current (mA) | 440 |
| Holding Current (mA) | 440 |
| Resistance Ω | 54.6 |
| Ingress Protection Rating | IP65 |
| Electrical Protection | Not applicable |
| Area Classification | General purpose |
| Coil Class | Std |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | FKM |
| Solenoid Connection | Din Connector (PG9 cord grip) |
