Pressure Sensor, Single Unit
SKU:
BAA-8302-912-44
Lead time: 10

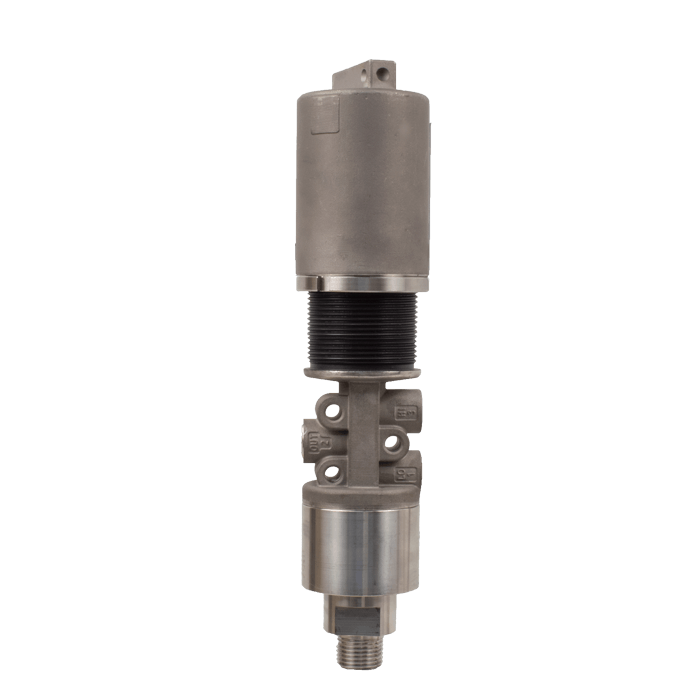

Pressure Sensor, Single Unit
Stainless Steel Pressure Sensor
The VERSA pneumatic/hydraulic Pressure Sensor, or Stick Pilot, is designed to protect equipment and installations against abnormal pressures. It is available in pressure ranges up to 10,000 psi. It is also available in a dual configuration for a high/low pressure sensor system.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- Low-temperature Buna o-ring seals for low-temperature applications down to -40°F
100% Leak Tested • 10-Year Warranty
| Actuation | Block and Bleed Pilot with Automatic Reset - adjustable pilot range |
|---|---|
| Function | Selector (2 inlets-1 outlet), 2-pos [8-way] |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 10-150 psi |
| Valve Pressure Range (BAR) | 0.70-10.3 bar |
| Primary Flow | 0.12 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Pilot Pressure Range (PSI) | 50-260 psi |
| Pilot Pressure Range (BAR) | 3.45-17.9 bar |
| Temperature Range (F) | -31°F to 149°F |
| Temperature Range (C) | -35°C to 65°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 4.880000 |
