Valve, 2-Way, Brass
SKU:
BCK-2206-155
Lead time: 10
Valve, 2-Way, Brass
Summary

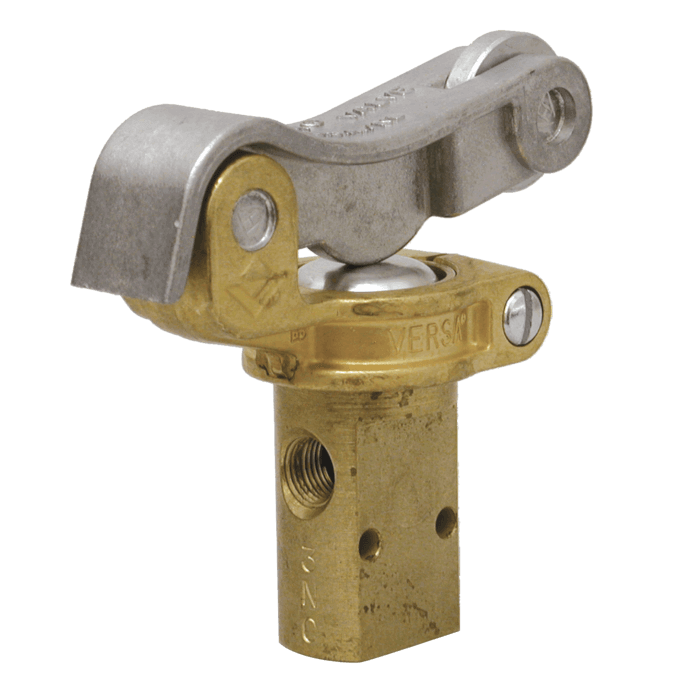

B Series Directional Control Valve
The Versa B Series offers a collection of manual and pilot actuated valves with a compact brass body construction, including buttons, levers and cams. The B series of valves provide a perfect solution for applications controlling pilot air, bleeding cylinders, and operating air tools.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, B Series |
|---|---|
| Actuation | Cam \ Spring Return |
| Function | 2-way, 2-pos, NO |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | VAC-200 psi |
| Valve Pressure Range (BAR) | VAC-13.8 bar |
| Primary Flow | 0.50 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas, Water |
| Temperature Range (F) | 5°F to 300°F |
| Temperature Range (C) | -15°C to 149°C |
| Seal Material | FKM |
| Body & Internal Parts | Brass |
