Valve, 2-Way, Brass
SKU:
BHK-2208-EP-S
Lead time: 10

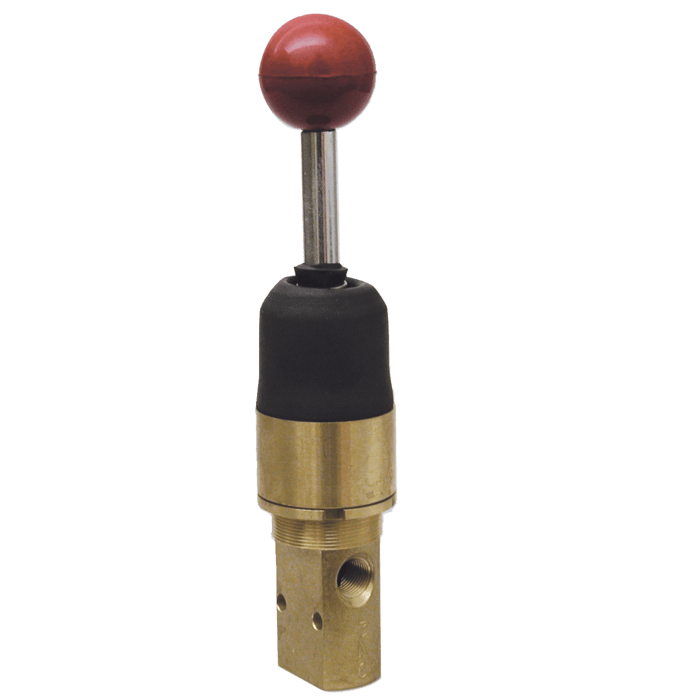

Valve, 2-Way, Brass
B Series Directional Control Valve
The Versa B Series offers a collection of manual and pilot actuated valves with a compact brass body construction, including buttons, levers and cams. The B series of valves provide a perfect solution for applications controlling pilot air, bleeding cylinders, and operating air tools.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- Ethylene Propylene o-ring seals resist heat, oxidation, ozone and weather in low-temperature applications: equivalent to EPR or EPM
100% Leak Tested • 10-Year Warranty
| Actuation | Hand Lever-Detented | Spring Return |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | VAC-200 psi |
| Valve Pressure Range (BAR) | VAC-13.8 bar |
| Primary Flow | 0.60 Cv |
| Media | Air - Inert Gas, Hydraulic, Water |
| Temperature Range (F) | -20°F to 300°F |
| Temperature Range (C) | -29°C to 149°C |
| Body & Internal Parts | Brass |
| Weight | 0.640000 |
