Valve, 3-Way, NPB
SKU:
BHS-3208-S-11-167
Lead time: 10

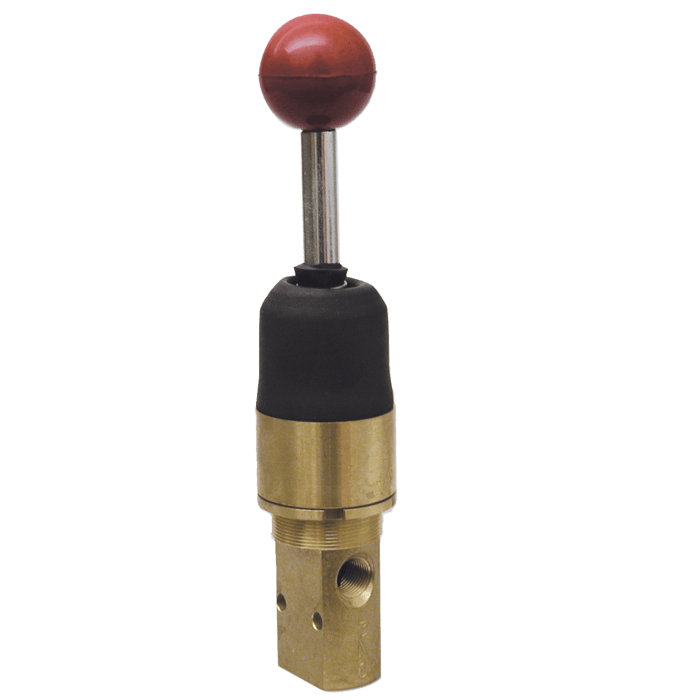

Valve, 3-Way, NPB
B Series Directional Control Valve
The Versa B Series offers a collection of manual and pilot actuated valves with a compact brass body construction, including buttons, levers and cams. The B series of valves provide a perfect solution for applications controlling pilot air, bleeding cylinders, and operating air tools.
Product Features
- Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
100% Leak Tested • 10-Year Warranty
| Actuation | Hand Lever-Offset | Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | VAC-200 psi |
| Valve Pressure Range (BAR) | VAC-13.8 bar |
| Primary Flow | 0.60 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -9°F to 200°F |
| Temperature Range (C) | -23°C to 93°C |
| Body & Internal Parts | Nickel Plated Brass |
| Weight | 0.640000 |
