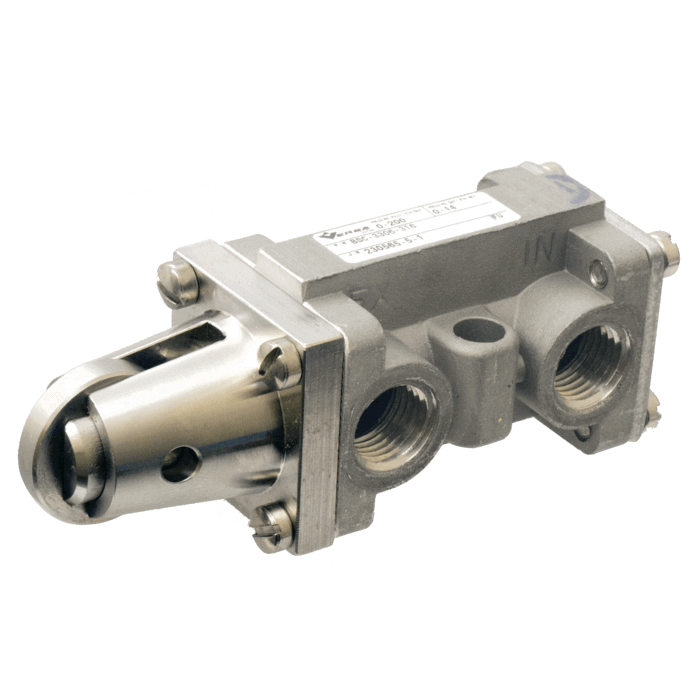

Valve, 3-Way, SST
SKU:
BSC-3308-316-S
Lead time: 20
Valve, 3-Way, SST
Summary
B-316 Series Directional Control Valve
The VERSA B-316 Series is a complete line of compact, rugged three-way (3/2), side-ported valves constructed of 316 stainless steel which conforms to NACE standard MR-01-75. They are designed for use in corrosive environments and to control a variety of aggressive media as well as air. The B-316 Series is the pneumatic leader for use in process control, wellhead and safety shutdown systems.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, B-316 Series |
|---|---|
| Actuation | Cam \ Spring Return |
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-200 psi |
| Valve Pressure Range (BAR) | 0-13.8 bar |
| Primary Flow | 1.6 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | 5°F to 300°F |
| Temperature Range (C) | -15°C to 149°C |
| Seal Material | FKM |
| Body & Internal Parts | 316L Stainless Steel |
