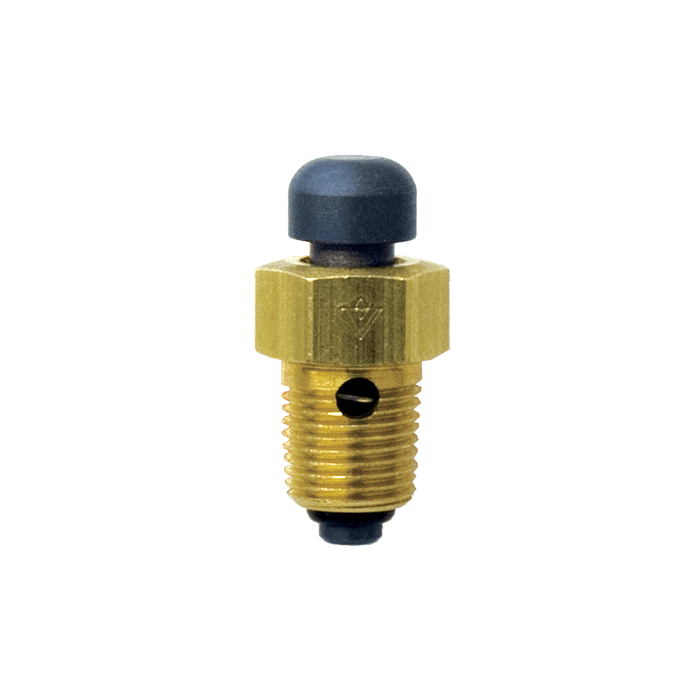

Bleed Valve, Brass
SKU:
BV-2-155
Lead time: 10
Bleed Valve, Brass
Brass Bleed Valve
The VERSA brass Bleed Control Valves provide an economical solution for effective flow control in pneumatic applications. The Bleed Control Valve screws into the exhaust port of any VERSA directional control valve to offer "built-in" cylinder speed control.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Manual bleed button |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | 0-200 psi |
| Valve Pressure Range (BAR) | 0-13.8 bar |
| Media | Air - Inert Gas |
| Temperature Range (F) | 5°F to 203°F |
| Temperature Range (C) | -15°C to 95°C |
| Body & Internal Parts | Brass |
| Weight | 0.040000 |
