Speed Control, Delrin, Dust Excluder
SKU:
C-43SC-NE-DE3
Lead time: 20
Speed Control, Delrin, Dust Excluder
Summary

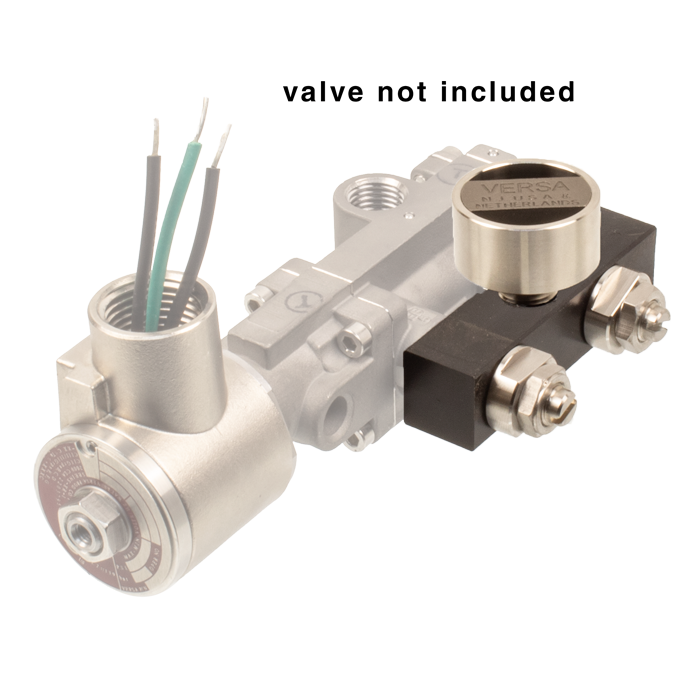

Delrin NAMUR Speed Control
The VERSA NAMUR Speed Control, designed for use with C-316 NAMUR valves, is a device to control actuator speed in applications where the environment is corrosive from production, plant pollutants, or other environmental issues. This pneumatic accessory extends valve and actuator life and reliability. The ReBreather redirects clean instrumentation air, preventing external dirty air from entering the control system during the return stroke.
Product Features
- Constructed of Delrin® engineering thermoplastic ideal for high load mechanical applications across industries
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Acc, Speed Control |
|---|---|
| Actuation | Two adjustable stems w/lock nut for adjustment of open/close speeds. |
| Port Size | Body Ported, 1/4" NPT |
| Primary Flow | 2.0 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -4°F to 203°F |
| Temperature Range (C) | -20°C to 95°C |
| Seal Material | FKM |
| Body & Internal Parts | Engineered Polymer |
