Valve, 4-Way, Alum, 120V60Hz
SKU:
CGG-4222-243-A120
Lead time: 5
Valve, 4-Way, Alum, 120V60Hz

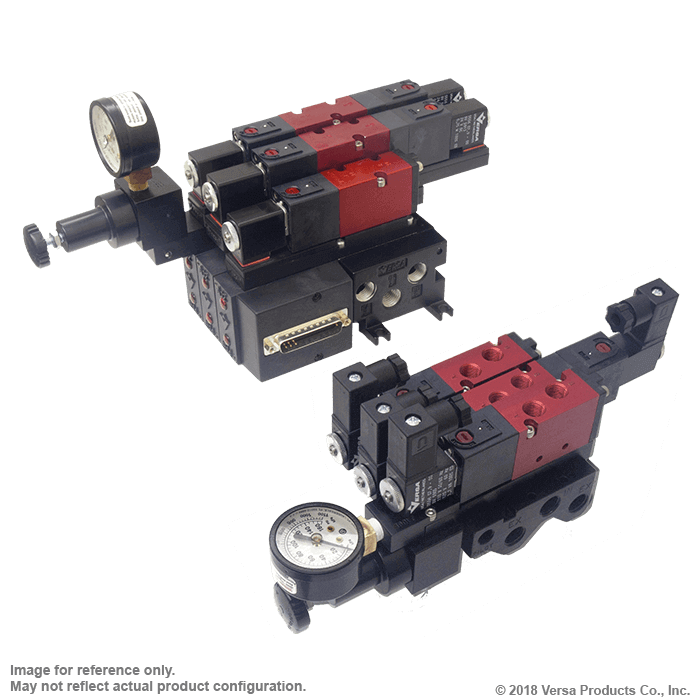

C5 Series Directional Control Valve
VERSA C-Series C5 aluminum valves are multi-purpose pilot-operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow-controlling element of each valve. The use of elastomer sealing provides bubble-tight operation and an efficient process due to no waste of leaking air.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: Molded coil with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Double Solenoid-Pilot |
|---|---|
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | 10-115 psi |
| Valve Pressure Range (BAR) | 0.70-7.93 bar |
| Primary Flow | 0.75 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -4°F to 104°F |
| Temperature Range (C) | -20°C to 40°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.000000 |
| Solenoid Description | GP - EZ Class - AC only |
|---|---|
| Voltage | 120 V 60 Hz ±10% (A120) |
| Power | 11.76 VA |
| Inrush Current (mA) | 127 |
| Holding Current (mA) | 98 |
| Resistance Ω | 647 |
| Ingress Protection Rating | NEMA 1,2,3 |
| Electrical Protection | Not applicable |
| Coil Class | Std |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | Buna |
| Solenoid Connection | Molded coil with 24" wires |
| Certification | CSA, UL |
