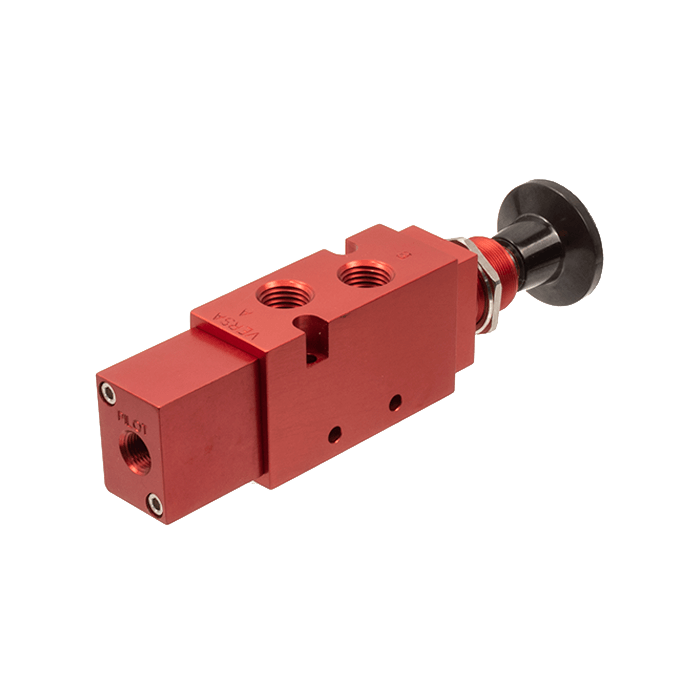

Valve, 4-Way, Alum
SKU:
CPI-4302
Lead time: 5
Valve, 4-Way, Alum
C7 Series Directional Control Valve
VERSA C-Series C7 aluminum valves are multi-purpose pilot-operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow-controlling element of each valve. The use of elastomer sealing provides bubble-tight operation and an efficient process due to no waste of leaking air.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Pilot | Palm Button |
|---|---|
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | VAC-115 psi |
| Valve Pressure Range (BAR) | VAC-7.93 bar |
| Primary Flow | 1.5 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Pilot Pressure Range (PSI) | 10-115 psi |
| Pilot Pressure Range (BAR) | 0.70-7.93 bar |
| Temperature Range (F) | -4°F to 203°F |
| Temperature Range (C) | -20°C to 95°C |
| Body & Internal Parts | Aluminum |
| Weight | 0.560000 |
