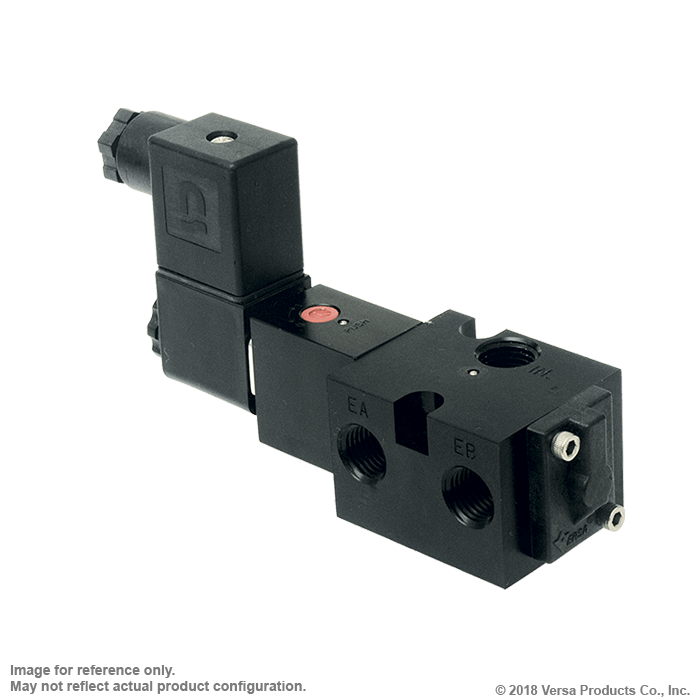

Valve, 3-Way, Alum
SKU:
CPS-3212-NB3
Lead time: 10
Valve, 3-Way, Alum
C5 NAMUR Series Directional Control Valve
The C5 NAMUR Valves are constructed from aluminum and are available as either 4-way ( double-acting actuators) or 3-way (spring return or fail-safe actuators). The field convertible valve utilizes no special tools, gaskets, or sealants. Relocation of a port plug allows for conversion between 3-way and 4-way.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Pilot | Spring Return |
|---|---|
| Function | 3-way, 2-pos, NO |
| Port Size | NAMUR 1/4" NPT |
| Valve Pressure Range (PSI) | VAC-115 psi |
| Valve Pressure Range (BAR) | VAC-7.93 bar |
| Primary Flow | 0.75 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Pilot Pressure Range (PSI) | 15-115 psi |
| Pilot Pressure Range (BAR) | 1.03-7.93 bar |
| Temperature Range (F) | -4°F to 203°F |
| Temperature Range (C) | -20°C to 95°C |
| Body & Internal Parts | Aluminum |
| Weight | 0.480000 |
