Valve, 4-Way, Alum, 240V60Hz
SKU:
CSG-4222-043-A240
Lead time: 5
Valve, 4-Way, Alum, 240V60Hz
Summary

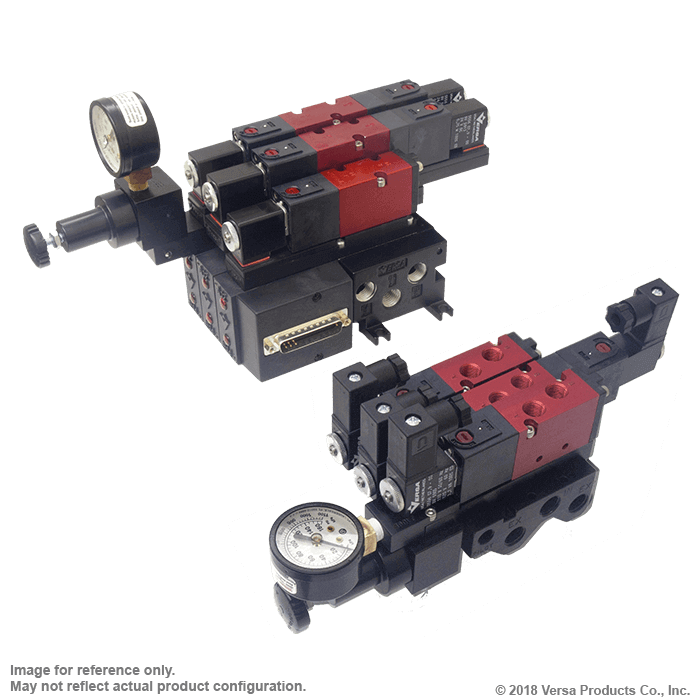

C5 Series Directional Control Valve
VERSA C-Series C5 aluminum valves are multi-purpose pilot-operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow-controlling element of each valve. The use of elastomer sealing provides bubble-tight operation and an efficient process due to no waste of leaking air.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: micro-mini molded 3 spade coil (EN 175301-803 Form C)
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, C5 Series |
|---|---|
| Actuation | Solenoid-Pilot | Spring Return |
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | 15-115 psi |
| Valve Pressure Range (BAR) | 1.03-7.93 bar |
| Primary Flow | 0.75 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | 14°F to 122°F |
| Temperature Range (C) | -10°C to 50°C |
| Seal Material | FKM |
| Body & Internal Parts | Aluminum |
Solenoid Specifications
| Solenoid Description | GP - EN Class |
|---|---|
| Voltage | 240 V 60 Hz ±10% (A240) |
| Power | 4 VA |
| Inrush Current | 22 |
| Holding Current | 16 |
| Resistance | 7750 |
| Ingress Protection Rating | 7924 |
| Electrical Protection | NA |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | FKM |
| Solenoid Connection | Molded 3 spade coil, micro-mini (Form C) |
