Valve, 4-Way, Alum, 220V50Hz
SKU:
CSG-4322-XV1-E220
Lead time: 10
Valve, 4-Way, Alum, 220V50Hz

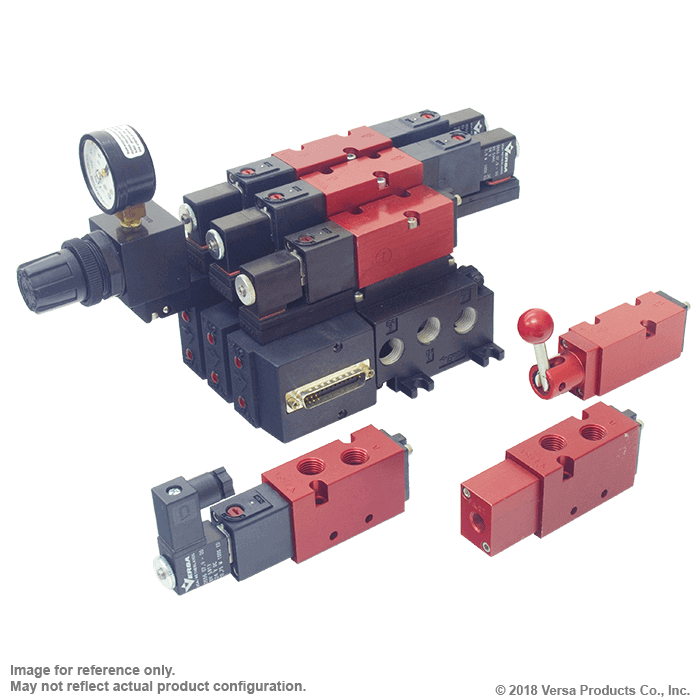

C7 Series Directional Control Valve
VERSA C-Series C7 aluminum valves are multi-purpose pilot-operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow-controlling element of each valve. The use of elastomer sealing provides bubble-tight operation and an efficient process due to no waste of leaking air.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: 1/2" NPT female conduit with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Solenoid-Pilot | Spring Return |
|---|---|
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 25-150 psi |
| Valve Pressure Range (BAR) | 1.72-10.3 bar |
| Primary Flow | 1.5 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -4°F to 189°F |
| Temperature Range (C) | -20°C to 87°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.250000 |
| Solenoid Description | Hazloc - E4 Class XV Option |
|---|---|
| Voltage | 220 V 50 Hz ±10% (E220) |
| Power | 3.3 VA |
| Inrush Current (mA) | 30 |
| Holding Current (mA) | 15 |
| Resistance Ω | 2714 |
| Ingress Protection Rating | IP66 / 67 / 68, NEMA 4X & 6P |
| Electrical Protection | Not applicable |
| Area Classification | Cl I, Grps B,C,D - Cl II, Grps E,F,G - Cl III |
| Coil Class | H |
| Zone | 1 |
| T Rating (Gas) | 4 |
| T Rating (Dust) | 135 |
| Solenoid Housing Material | Stainless Steel - Plated |
| Solenoid Seal Material | FKM |
| Solenoid Connection | 1/2" NPT female conduit with 24" wires |
| Certification | cCSAus |
