Valve, 4-Way, SST
SKU:
CSP-4302-316-NGST
Lead time: 10

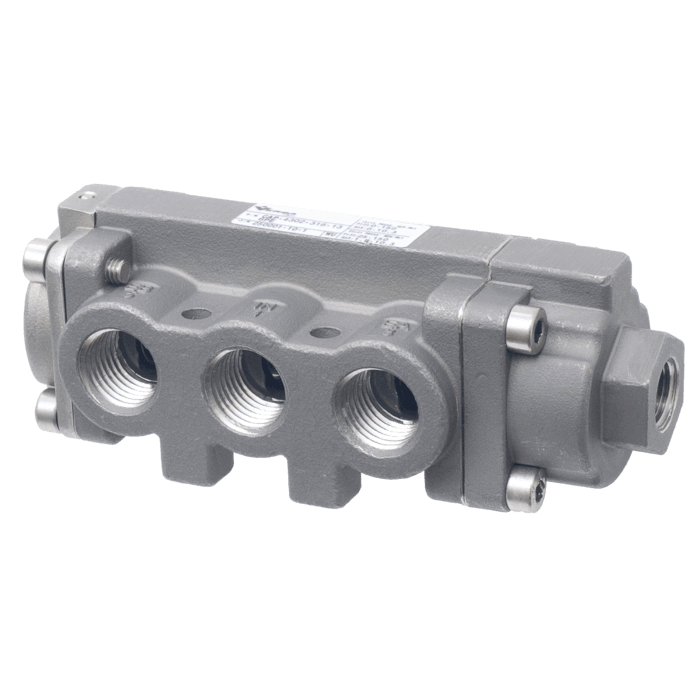

Valve, 4-Way, SST
C-316 Series Directional Control Valve
The VERSA C-316 Series stainless steel valve is available as either a 4-way, for double-acting devices or a 3-way, for spring return devices. All solenoid actuators are solenoid/pilot type, which allows the use of the smallest solenoids available, resulting in low power consumption. This design also assures a positive shifting force, which ensures the valve shifts when energized and reduces the chance of coil burnout.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- Low-temperature Buna o-ring seals for low-temperature applications down to -40°F
100% Leak Tested • 10-Year Warranty
| Actuation | Pilot | Spring Return |
|---|---|
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-150 psi |
| Valve Pressure Range (BAR) | 0-10.3 bar |
| Primary Flow | 2.0 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -55°F to 200°F |
| Temperature Range (C) | -48°C to 93°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 1.080000 |
