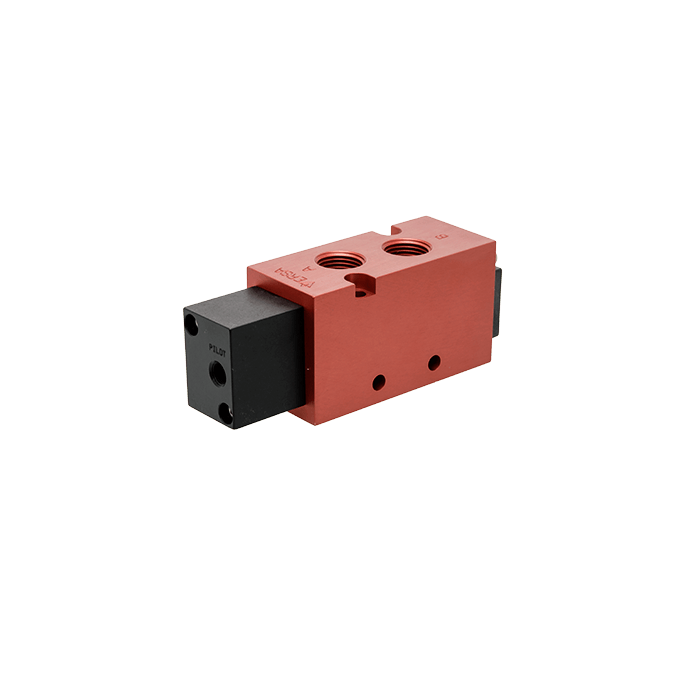

Valve, 4-Way, Alum
SKU:
CSP-4502-NGS
Lead time: 5
Valve, 4-Way, Alum
C9 Series Directional Control Valve
VERSA C-Series C9 aluminum valves are multi-purpose pilot-operated pneumatic valves consisting of two body types, side ported and manifold mounted. A balanced, packed spool is the flow-controlling element of each valve. The use of elastomer sealing provides bubble-tight operation and an efficient process due to no waste of leaking air.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Pilot | Spring Return |
|---|---|
| Function | 4-way, 2-pos |
| Port Size | Body Ported, 1/2" NPT |
| Valve Pressure Range (PSI) | VAC-150 psi |
| Valve Pressure Range (BAR) | VAC-10.3 bar |
| Primary Flow | 4.1 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Pilot Pressure Range (PSI) | 25-150 psi |
| Pilot Pressure Range (BAR) | 1.72-10.3 bar |
| Temperature Range (F) | -4°F to 200°F |
| Temperature Range (C) | -20°C to 93°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.510000 |
