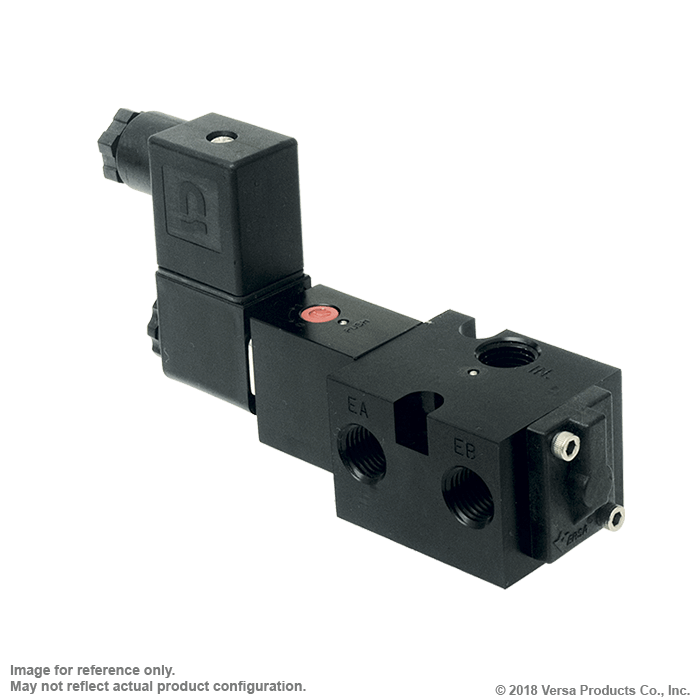

Valve, 4-Way, Alum, 120V60Hz
SKU:
CXX-4234-NB1-HC-A120
Lead time: 5
Valve, 4-Way, Alum, 120V60Hz
Summary
C5 NAMUR Series Directional Control Valve
The C5 NAMUR Valves are constructed from aluminum and are available as either 4-way ( double-acting actuators) or 3-way (spring return or fail-safe actuators). The field convertible valve utilizes no special tools, gaskets, or sealants. Relocation of a port plug allows for conversion between 3-way and 4-way.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: DIN Connector with PG9 cord grip
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, C5 NAMUR |
|---|---|
| Actuation | Double Solenoid-Pilot Spring Center |
| Function | 4-way, 3-pos, Cylinder ports open to exhaust |
| Port Size | NAMUR 1/4" NPT |
| Valve Pressure Range (PSI) | 15-150 psi |
| Valve Pressure Range (BAR) | 1.03-10.3 bar |
| Primary Flow | 0.75 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -4°F to 104°F |
| Temperature Range (C) | -20°C to 40°C |
| Seal Material | FKM |
| Body & Internal Parts | Aluminum |
Solenoid Specifications
| Solenoid Description | GP - EZ Class - AC only |
|---|---|
| Voltage | 120 V 60 Hz ±10% (A120) |
| Power | 11.76 VA |
| Inrush Current | 127 |
| Holding Current | 98 |
| Resistance | 647 |
| Ingress Protection Rating | IP65 |
| Electrical Protection | NA |
| Area Classification | General purpose |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | Buna |
| Solenoid Connection | Din Connector (PG9 cord grip) |
| Certification | CSA, UL |
