Valve, 4-Way, Alum, 24VDC
SKU:
CXX-4293-NB3-027-HC-D024
Lead time: 10

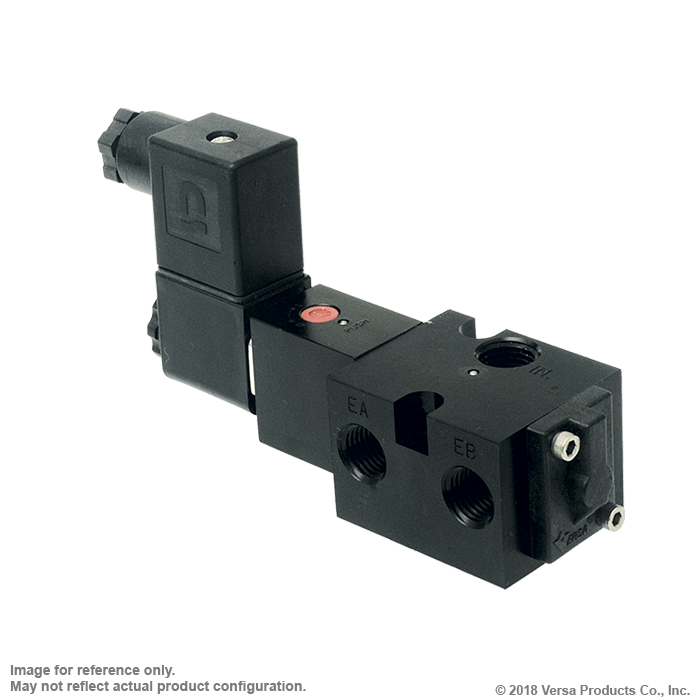

Valve, 4-Way, Alum, 24VDC
C5 NAMUR Series Directional Control Valve
The C5 NAMUR Valves are constructed from aluminum and are available as either 4-way ( double-acting actuators) or 3-way (spring return or fail-safe actuators). The field convertible valve utilizes no special tools, gaskets, or sealants. Relocation of a port plug allows for conversion between 3-way and 4-way.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
100% Leak Tested • 10-Year Warranty
| Actuation | Double Solenoid-Pilot Spring Center |
|---|---|
| Function | 4-way, 3-pos, Blocked Center |
| Port Size | NAMUR 1/4" G Threads |
| Valve Pressure Range (PSI) | 15-115 psi |
| Valve Pressure Range (BAR) | 1.03-7.93 bar |
| Primary Flow | 0.75 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | 14°F to 122°F |
| Temperature Range (C) | -10°C to 50°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.060000 |
| Solenoid Description | GP - EN Class |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 2.9 W |
| Inrush Current (mA) | 121 |
| Holding Current (mA) | 121 |
| Resistance Ω | 193 |
| Ingress Protection Rating | IP65 |
| Electrical Protection | Not applicable |
| Area Classification | General purpose |
| Coil Class | Std |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | FKM |
| Solenoid Connection | Din Connector (PG7 cable gland) |
