Dust Excluder (3/8" NPT), SST
SKU:
DE-4-316
Lead time: 5

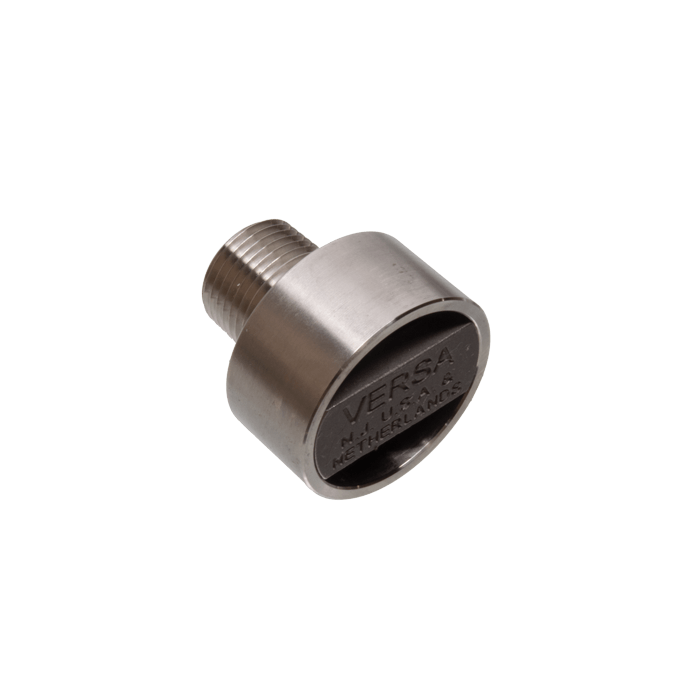

Dust Excluder (3/8" NPT), SST
Stainless Steel Dust Excluder
The VERSA stainless steel Dust Excluders are designed for harsh environments and protect against dirt, dust, moisture, and insects entering the valve through the exhaust port without obstructing the flow. The Dust Excluder is based on a flexible seal resting on a large-diameter seat. The design provides a tightly closed exhaust port, low breakaway pressure, large flow capacity, and self-cleaning action. It is installed by threading into the exhaust port of a directional control valve.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- Neoprene o-rings resist abrasion, weather, lubricating oils, and flame over a broad temperature range: equivale to CR
100% Leak Tested • 10-Year Warranty
| Actuation | NA |
|---|---|
| Port Size | Body Ported, 3/8" NPT |
| Valve Pressure Range (PSI) | 0-200 psi |
| Primary Flow | 0.68 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -20°F to 200°F |
| Temperature Range (C) | -29°C to 93°C |
| Body & Internal Parts | 316 Stainless Steel |
| Weight | 0.170000 |
