Valve, 3-Way, SST, 24VDC
SKU:
E4SM-3301-34-316-XDBS3-D024
Lead time: 10

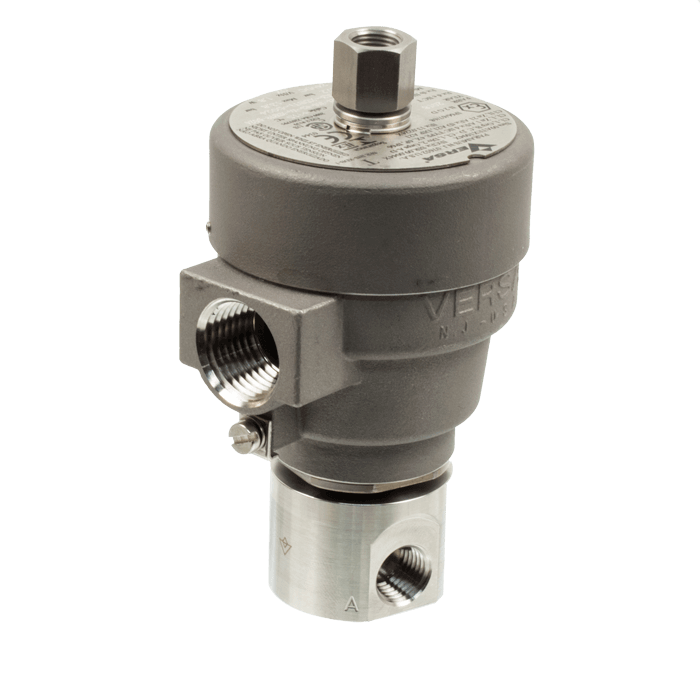

Valve, 3-Way, SST, 24VDC
E4 Series Directional Control Valve
The VERSA E4 Series offers a compact, heavy-duty solenoid valve for hazardous location service. The valve and solenoid housing are made of stainless steel for superior corrosion resistance. Worldwide certifications are available. All products are rated for air, gas, oil, or water.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: M20 female conduit with integral junction box
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-175 psi |
| Valve Pressure Range (BAR) | 0-12.1 bar |
| Primary Flow | 0.060 Cv |
| Primary Flow Description | A to "B" |
| Secondary Flow | 0.106 Cv |
| Secondary Flow Description | B to "C" |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 194°F |
| Temperature Range (C) | -20°C to 90°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 2.000000 |
| Solenoid Description | Hazloc - E4 Class XDB Option |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 1.8 W |
| Inrush Current (mA) | 75 |
| Holding Current (mA) | 75 |
| Resistance Ω | 320 |
| Ingress Protection Rating | IP66 / 67 / 68, NEMA 4X & 6P |
| Electrical Protection | Not applicable |
| Area Classification | Cl I, Zn 1 A/Ex db IIC - Cl II, Zn 21 AEx tD A21, DIP A21, II 2 G Ex db IIC T4 Gb , II 2 D Ex tb IIIC IP66 T135°C Db |
| Coil Class | H |
| Protection Classification | db |
| Zone | 1 |
| T Rating (Gas) | 4 |
| T Rating (Dust) | 135 |
| Solenoid Housing Material | Stainless Steel - Type 316L |
| Solenoid Seal Material | FKM |
| Solenoid Connection | M20 female conduit (integral junction box) |
| Certification | ATEX, cCSAus, IECEx, INMETRO, KC, NEPSI-CCC, PESO, TR-CU, TS OSHA |
