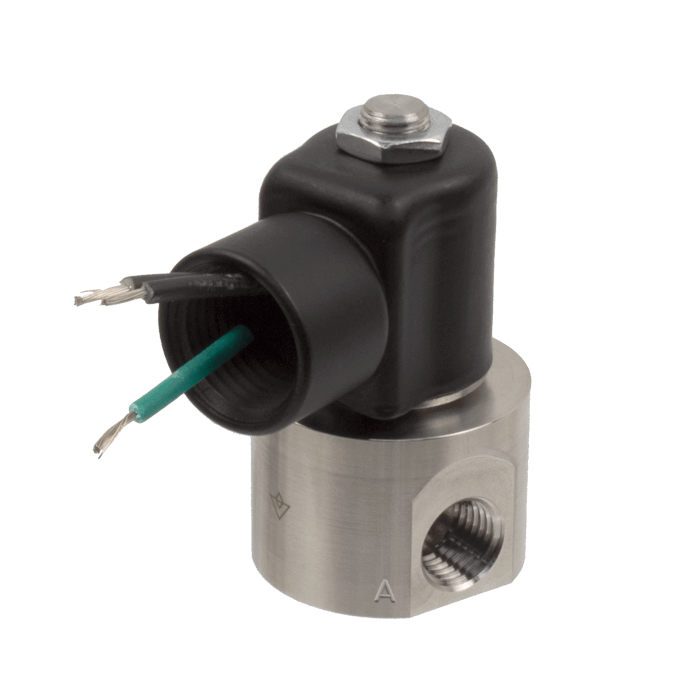

Valve, 2-Way, SST, 120V60Hz
SKU:
E5SM-2301-80-A120
Lead time: 10
Valve, 2-Way, SST, 120V60Hz
E5 Series Directional Control Valve
The VERSA E5 Series are compact direct-acting solenoid actuated valves. They are physically smaller than the Series E full-size valves but offer most of the same orifice sizes and operating pressure ranges. Ports are 1/8 NPT in the valve body, and the valves are individually mounted.
Product Features
- Constructed of stainless steel
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
Solenoid Features
- Solenoid coil connection: 1/2" NPT female conduit with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-75 psi |
| Valve Pressure Range (BAR) | 0-5.17 bar |
| Primary Flow | 0.26 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -40°F to 104°F |
| Temperature Range (C) | -40°C to 40°C |
| Body & Internal Parts | Stainless Steel |
| Weight | 0.810000 |
| Solenoid Description | GP - E5 Class |
|---|---|
| Voltage | 120 V 60 Hz ±10% (A120) |
| Power | 9 VA |
| Inrush Current (mA) | 127 |
| Holding Current (mA) | 75 |
| Resistance Ω | 475 |
| Ingress Protection Rating | NEMA 1,2,3 |
| Electrical Protection | Not applicable |
| Area Classification | General purpose |
| Coil Class | Std |
| Solenoid Housing Material | Steel - Painted |
| Solenoid Seal Material | Buna |
| Solenoid Connection | 1/2" NPT female conduit with 24" wires |
| Certification | CSA, UL |
