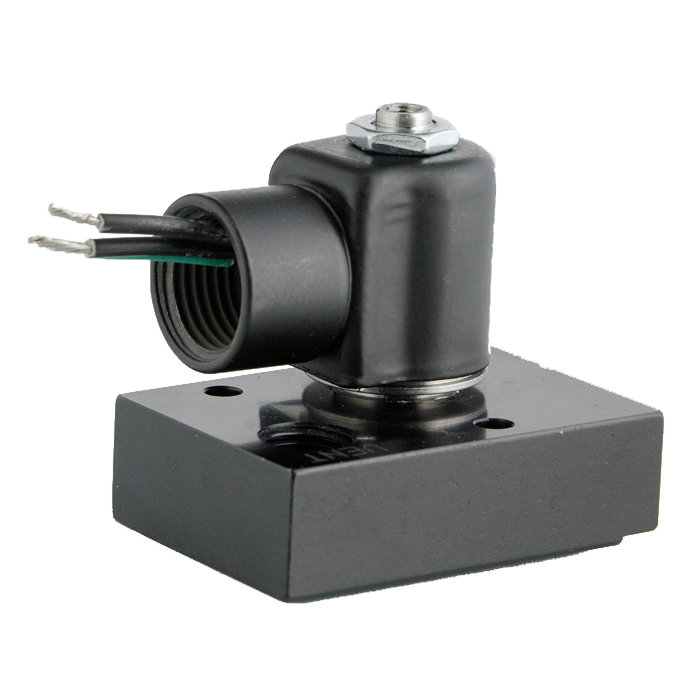

Valve, 3-Way, Alum, 24VDC
SKU:
E5SM-3011-34-NB1-D024
Lead time: 5
Valve, 3-Way, Alum, 24VDC
E5 NAMUR Series Directional Control Valve
The VERSA aluminum E5 NAMUR mount control valve is a simple, cost-effective, 3-way direct acting solenoid valve. It is designed to mount directly to any actuator with a NAMUR footprint reducing the cost of tubing, fittings, brackets, and labor.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
Solenoid Features
- Solenoid coil connection: mini molded 3 spade coil (EN 175301-803 Form B)
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | NAMUR 1/4" NPT |
| Valve Pressure Range (PSI) | 0-150 psi |
| Valve Pressure Range (BAR) | 0-10.3 bar |
| Primary Flow | 0.060 Cv |
| Primary Flow Description | Inlet (NC) to Common (COM) |
| Secondary Flow | 0.106 Cv |
| Secondary Flow Description | Common (COM) to Exhaust (NO) |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 104°F |
| Temperature Range (C) | -20°C to 40°C |
| Body & Internal Parts | Aluminum |
| Weight | 0.510000 |
| Solenoid Description | GP - EZ Class - DC only |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 10.5 W |
| Inrush Current (mA) | 440 |
| Holding Current (mA) | 440 |
| Resistance Ω | 54.6 |
| Ingress Protection Rating | NEMA 1,2,3 |
| Electrical Protection | Not applicable |
| Coil Class | Std |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | FKM |
| Solenoid Connection | Molded 3 spade coil, mini (Form B) |
