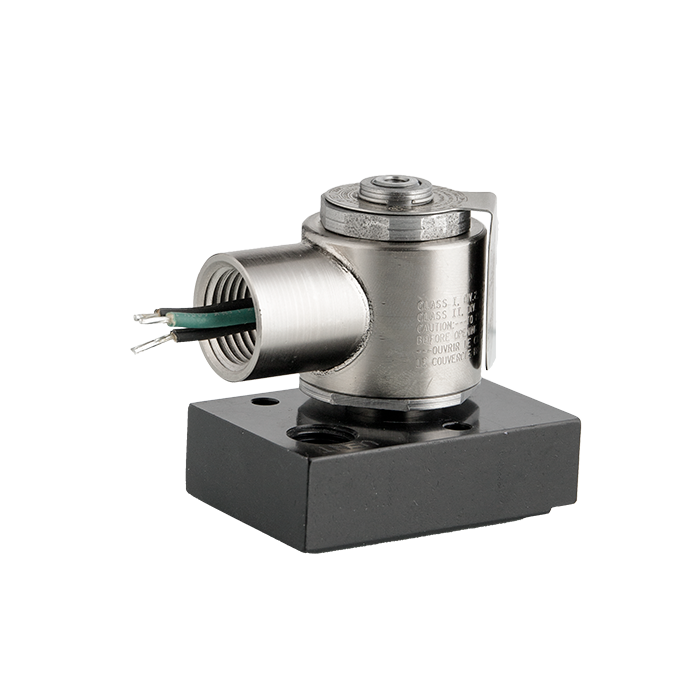

Valve, 3-Way, Alum, 48VDC
SKU:
E5SM-3011-34-NB1-XX-D048
Lead time: 5
Valve, 3-Way, Alum, 48VDC
E5 NAMUR Series Directional Control Valve
The VERSA aluminum E5 NAMUR mount control valve is a simple, cost-effective, 3-way direct acting solenoid valve. It is designed to mount directly to any actuator with a NAMUR footprint reducing the cost of tubing, fittings, brackets, and labor.
Product Features
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
Solenoid Features
- Solenoid coil connection: 1/2" NPT female conduit with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | NAMUR 1/4" NPT |
| Valve Pressure Range (PSI) | 0-150 psi |
| Valve Pressure Range (BAR) | 0-10.3 bar |
| Primary Flow | 0.060 Cv |
| Primary Flow Description | Inlet (NC) to Common (COM) |
| Secondary Flow | 0.106 Cv |
| Secondary Flow Description | Common (COM) to Exhaust (NO) |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Gas Temperature Range (F) | -4°F to 104°F |
| Gas Temperature Range (C) | -20°C to 40°C |
| Dust Temperature Range (F) | -4°F to 104°F |
| Dust Temperature Range (C) | -20°C to 40°C |
| Body & Internal Parts | Aluminum |
| Weight | 1.000000 |
| Solenoid Description | Hazloc- E5 Class |
|---|---|
| Voltage | 48 V DC ±10% (D048) |
| Power | 7.2 W |
| Inrush Current (mA) | 154 |
| Holding Current (mA) | 154 |
| Resistance Ω | 311 |
| Ingress Protection Rating | NEMA 1,2,3 |
| Electrical Protection | Not applicable |
| Area Classification | Cl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G |
| Coil Class | Std |
| T Rating (Gas) | 3C |
| T Rating (Dust) | 3C |
| Solenoid Housing Material | Steel - Plated |
| Solenoid Seal Material | FKM |
| Solenoid Connection | 1/2" NPT female conduit with 24" wires |
| Certification | cULus |
