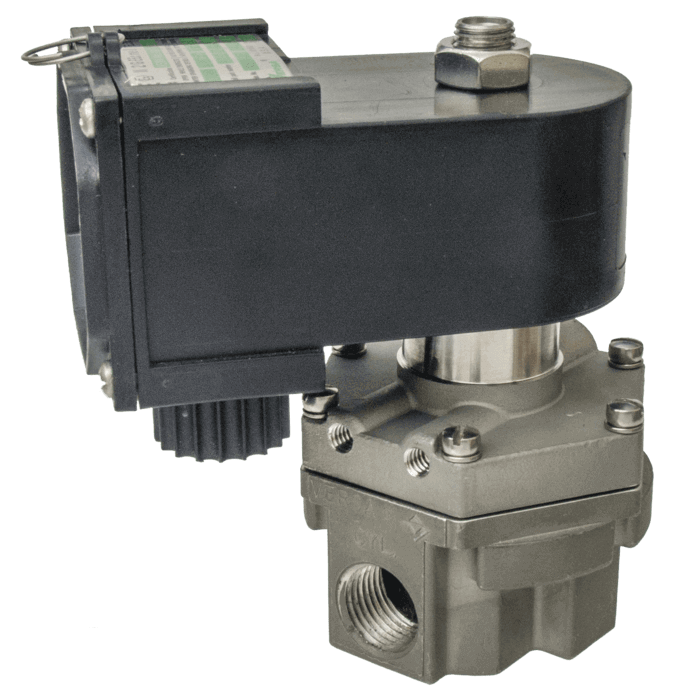

Electric Quick Exhaust, SST, 24VDC
SKU:
EQE-50304-316-XMAA-D024
Lead time: 10
Electric Quick Exhaust, SST, 24VDC
E Series Electrical Quick Exhaust Valve
The VERSA Electric Quick Exhaust valve is a three-way, NC, 3/2 valve with an extra large exhaust orifice to provide extra fast movement of the cylinder rod or to exhaust systems rapidly. When the solenoid is energized, the outlet port is connected to the inlet port, and the exhaust port is closed. When the solenoid is de-energized, the inlet port is closed, and the outlet port is connected to the exhaust port, providing rapid evacuation of the system.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: M20 female conduit with integral junction box
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/2" NPT |
| Valve Pressure Range (PSI) | 5-150 psi |
| Valve Pressure Range (BAR) | 0.34-10.3 bar |
| Primary Flow | 8.8 Cv |
| Primary Flow Description | Exhaust |
| Secondary Flow | 0.060 Cv |
| Secondary Flow Description | Inlet |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -4°F to 131°F |
| Temperature Range (C) | -20°C to 55°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 4.120000 |
