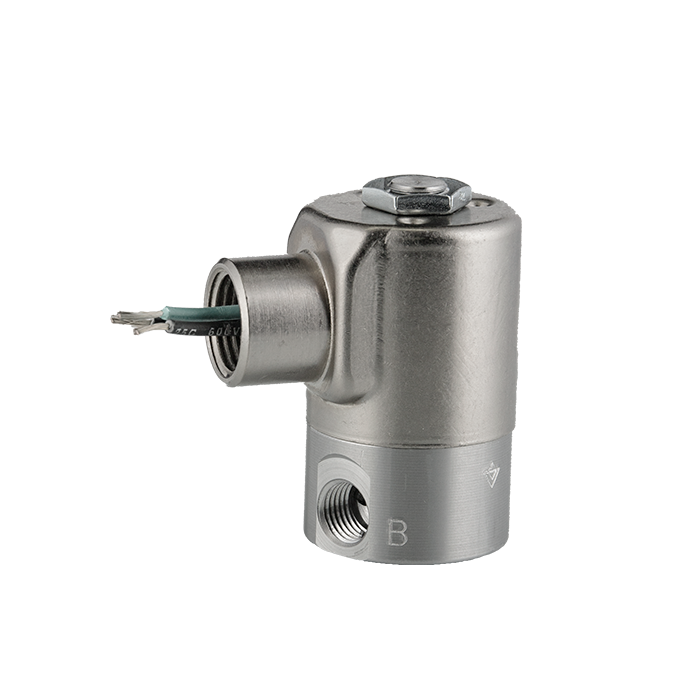

Valve, 2-Way, SST, 24VDC
SKU:
ESM-2301-100-316-D024
Lead time: 10
Valve, 2-Way, SST, 24VDC
E Series Directional Control Valve
The VERSA stainless steel E Series offers full-size side-ported valves that are direct solenoid actuated and individually mounted. 1/8" NPT or 1/4" NPT ports are provided in the valve body. Also available are manifold mounting versions that can be mounted on a manifold that can have 1 to 10 valve stations.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: 1/2" NPT female conduit with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-50 psi |
| Valve Pressure Range (BAR) | 0-3.45 bar |
| Primary Flow | 0.45 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -40°F to 104°F |
| Temperature Range (C) | -40°C to 40°C |
| Body & Internal Parts | 316 Stainless Steel |
| Weight | 1.180000 |
| Solenoid Description | GP - E Class |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 9.5 W |
| Inrush Current (mA) | 381 |
| Holding Current (mA) | 381 |
| Resistance Ω | 63 |
| Ingress Protection Rating | NEMA 1,2,3 |
| Electrical Protection | Not applicable |
| Area Classification | General purpose |
| Coil Class | Std |
| Solenoid Housing Material | Steel - Plated |
| Solenoid Seal Material | Buna |
| Solenoid Connection | 1/2" NPT female conduit with 24" wires |
| Certification | CSA, UL |
