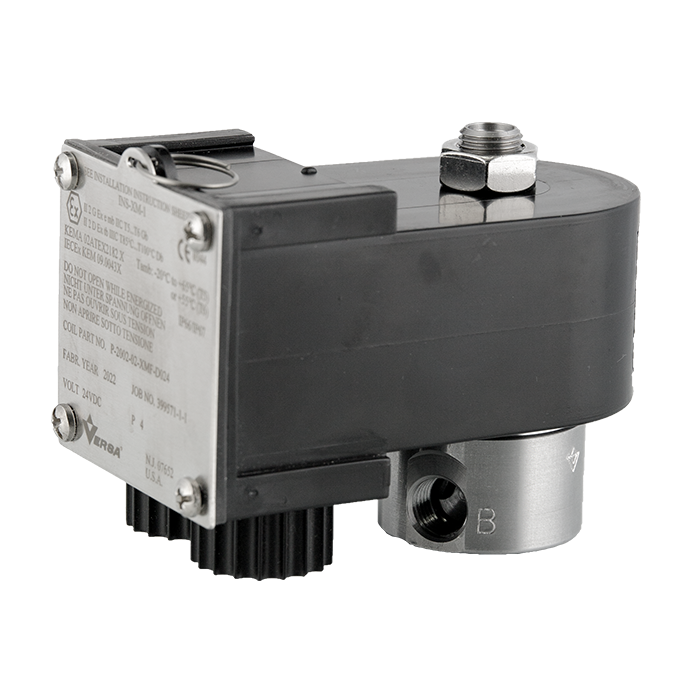

Valve, 2-Way, SST, 24VDC
SKU:
ESM-2301-80-316-XMFA-D024
Lead time: 10
Valve, 2-Way, SST, 24VDC
E Series Directional Control Valve
The VERSA stainless steel E Series offers full-size side-ported valves that are direct solenoid actuated and individually mounted. 1/8" NPT or 1/4" NPT ports are provided in the valve body. Also available are manifold mounting versions that can be mounted on a manifold that can have 1 to 10 valve stations.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
Solenoid Features
- Solenoid coil connection: M20 female conduit with integral junction box
100% Leak Tested • 10-Year Warranty
| Actuation | Direct Acting Solenoid \ Spring Return |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-100 psi |
| Valve Pressure Range (BAR) | 0-6.90 bar |
| Primary Flow | 0.26 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Temperature Range (F) | -4°F to 131°F |
| Temperature Range (C) | -20°C to 55°C |
| Body & Internal Parts | 316 Stainless Steel |
| Weight | 2.310000 |
