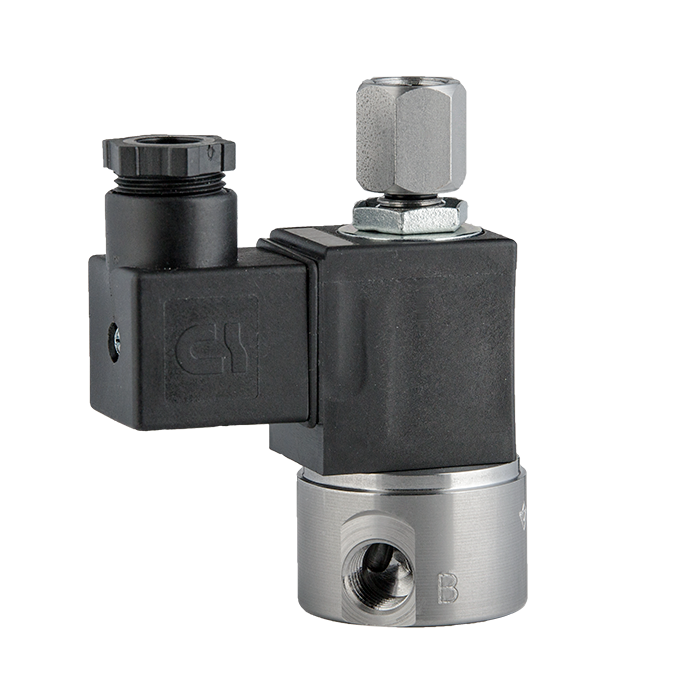

Valve, Diverter, SST, 24VDC
SKU:
ESM-7302-86-H-HC-D024
Lead time: 10
Valve, Diverter, SST, 24VDC
Summary
E Series Directional Control Valve
The VERSA stainless steel E Series offers full-size side-ported valves that are direct solenoid actuated and individually mounted. 1/8" NPT or 1/4" NPT ports are provided in the valve body. Also available are manifold mounting versions that can be mounted on a manifold that can have 1 to 10 valve stations.
Product Features
- Constructed of stainless steel
- Buna-N/nitrile rubber o-ring seals perform reliably with oil, fuel, and other chemicals over broad temperature range
Solenoid Features
- Solenoid coil connection: DIN Connector with PG9 cord grip
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, ESM Series |
|---|---|
| Actuation | 7764 |
| Function | Diverter (1 inlet-2 outlets), 2-pos [7way] |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-100 psi |
| Valve Pressure Range (BAR) | 0-6.90 bar |
| Primary Flow | 0.26 Cv |
| Primary Flow Description | Inlet (B) to Outlet (A) |
| Secondary Flow | 0.21 Cv |
| Secondary Flow Description | Inlet (B) to Outlet (C) |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | -4°F to 104°F |
| Temperature Range (C) | -20°C to 40°C |
| Seal Material | Buna |
| Body & Internal Parts | Stainless Steel |
Solenoid Specifications
| Solenoid Description | GP - E Class HC Option |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 10 W |
| Inrush Current | 429 |
| Holding Current | 429 |
| Resistance | 56 |
| Ingress Protection Rating | IP65 |
| Electrical Protection | NA |
| Area Classification | General purpose |
| Solenoid Housing Material | Engineered Polymer |
| Solenoid Seal Material | Buna |
| Solenoid Connection | Din Connector (PG9 cord grip) |
