Vent Screen 1/8" NPT, SST
SKU:
MF-2-316
Lead time: 20

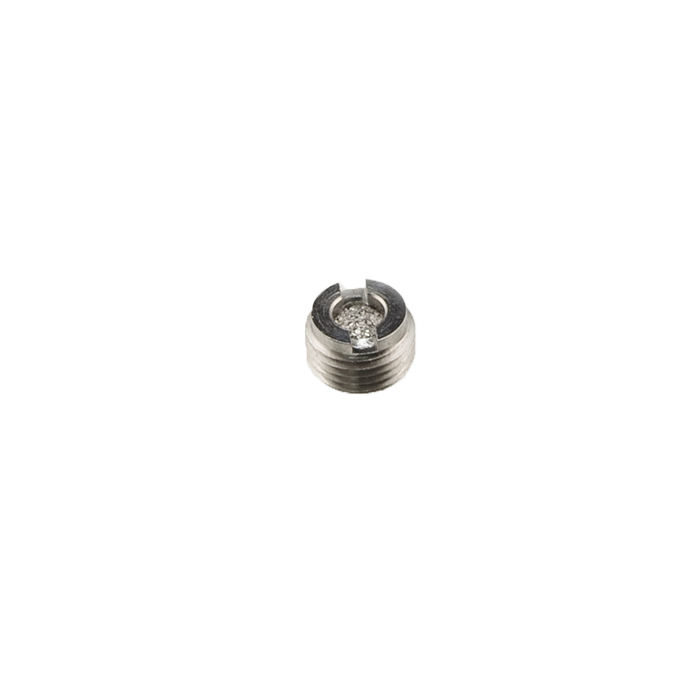

Vent Screen 1/8" NPT, SST
Summary
Stainless Steel Vent Screen/Bug Screen
The VERSA stainless steel Vent Screens are threaded into the exhaust port of a directional control valve and offer effective protection against dirt, dust, and insects entering the valve with minimal effect on flow.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Acc, Vent Screen |
|---|---|
| Actuation | NA |
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | 0-300 psi |
| Primary Flow | 0.010 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -40°F to 300°F |
| Temperature Range (C) | -40°C to 149°C |
| Seal Material | None |
| Body & Internal Parts | 316 Stainless Steel |
