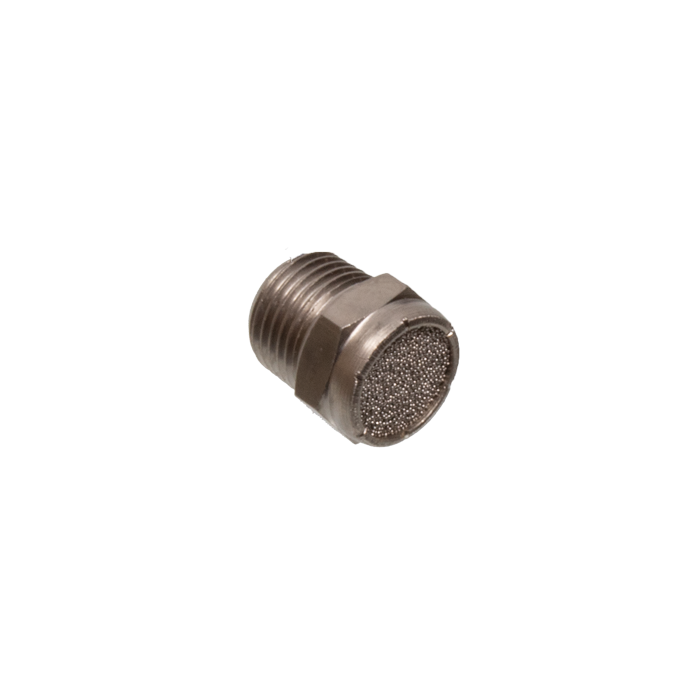

Exhaust Muffler, 1/8"NPT, Brass Plated
SKU:
MFS-2-10
Lead time: 5
Exhaust Muffler, 1/8"NPT, Brass Plated
Nickel Plated Brass Vent Screen/Bug Screen
The VERSA Vent Screens are available in nickel-plated brass. Threaded into the exhaust port of a directional control valve, they prevent dirt, dust, and insects from entering the valve with minimal effect on flow.
Product Features
- Constructed of forged brass with electroless nickel plating for increased wear resistance, hardness and corrosion protection. Long-lasting performance in the most demanding conditions
100% Leak Tested • 10-Year Warranty
| Actuation | NA |
|---|---|
| Port Size | Body Ported, 1/8" NPT |
| Valve Pressure Range (PSI) | 0-150 psi |
| Primary Flow | 0.14 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -40°F to 300°F |
| Temperature Range (C) | -40°C to 149°C |
| Body & Internal Parts | Nickel Plated Brass |
| Weight | 0.010000 |
