Vent Screen, 1-11 1/2 NPT, SST
SKU:
MFS-7-316
Lead time: 5
Vent Screen, 1-11 1/2 NPT, SST

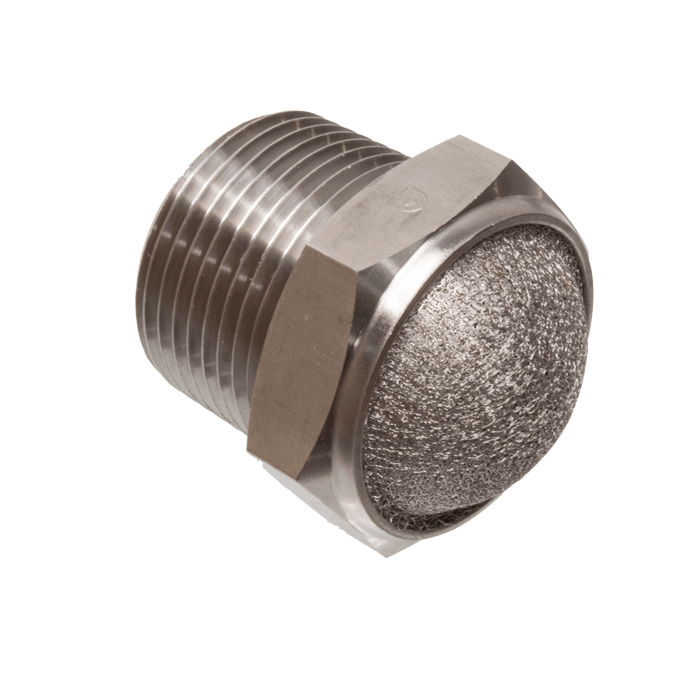

Stainless Steel Vent Screen/Bug Screen
The VERSA stainless steel Vent Screens are threaded into the exhaust port of a directional control valve and offer effective protection against dirt, dust, and insects entering the valve with minimal effect on flow.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
100% Leak Tested • 10-Year Warranty
| Actuation | NA |
|---|---|
| Port Size | Body Ported, 1" NPT |
| Valve Pressure Range (PSI) | 0-300 psi |
| Primary Flow | 4.1 Cv |
| Media | Air - Inert Gas |
| Temperature Range (F) | -40°F to 300°F |
| Temperature Range (C) | -40°C to 149°C |
| Body & Internal Parts | 316 Stainless Steel |
| Weight | 0.270000 |
