Valve, Manual Shut-Off, SST
SKU:
MSO2-3-316
Lead time: 10
Valve, Manual Shut-Off, SST

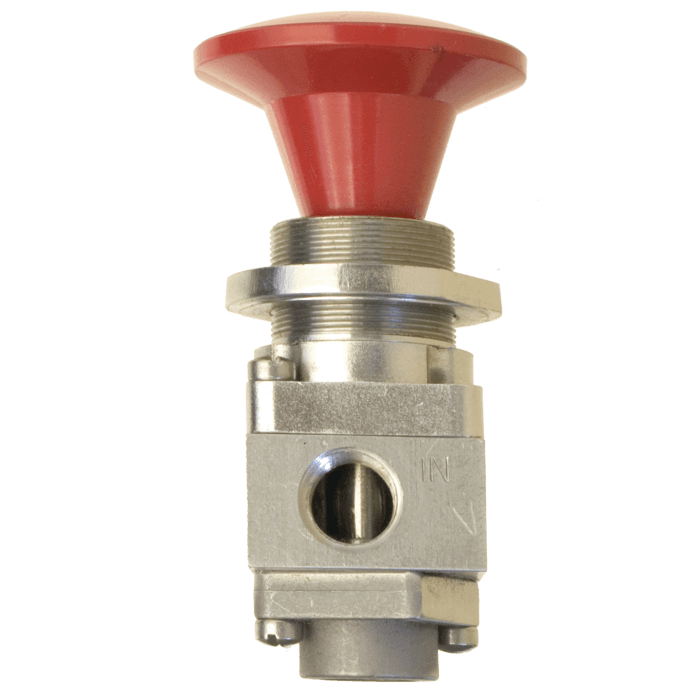

Manual Shutoff Valve
The VERSA B-316 Series stainless steel manual shutoff valve is designed for use in emergency shutdown systems. They are available in two types: a two-way Manual Bleed Valve and a three-way Manual Block & Bleed Valve. Both valves are constructed of 316 stainless steel, which meets NACE standard MR-01- 75 and can be used as panic valves to quickly depressurize the system to get immediate shutdown.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Palm Button | Detent |
|---|---|
| Function | 2-way, 2-pos, NC |
| Port Size | Body Ported, 1/4" NPT |
| Valve Pressure Range (PSI) | 0-150 psi |
| Valve Pressure Range (BAR) | 0-10.3 bar |
| Primary Flow | 2.0 Cv |
| Media | Air - Inert Gas, Hydraulic |
| Temperature Range (F) | 5°F to 300°F |
| Temperature Range (C) | -15°C to 149°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 0.770000 |
