Low Pressure Shuttle Valve
SKU:
SVLP-5-316BS
Lead time: 10

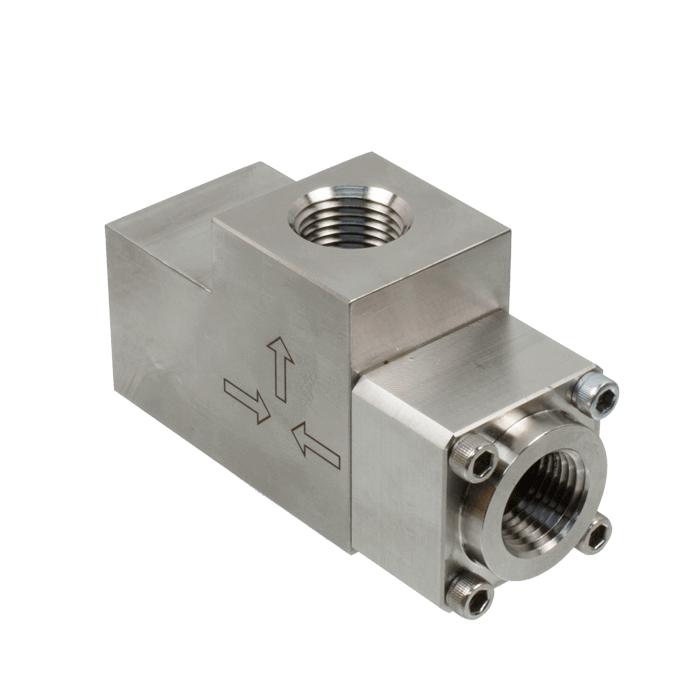

Low Pressure Shuttle Valve
Stainless Steel Low Pressure Shuttle Valve
The VERSA low-pressure Shuttle Valves are constructed of 316 stainless steel with resilient seals providing tight shut-off. Shuttle Valves are 3/2 valves primarily used to charge and discharge a pressure line or chamber from two - or more - sources. When a pressure signal enters the port blocked by the shuttle, it will cause the shuttle to shift toward the lower pressure port.
Product Features
- Constructed of SAE 316 stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
| Actuation | Automatic shift to lower pressure inlet source |
|---|---|
| Function | Selector (2 inlets-1 outlet), 2-pos [8-way] |
| Port Size | Body Ported, 1/2" NPT |
| Valve Pressure Range (PSI) | 20-200 psi |
| Valve Pressure Range (BAR) | 1.38-13.8 bar |
| Primary Flow | 2.0 Cv |
| Media | Air - Inert Gas, Hydraulic, Natural Gas |
| Temperature Range (F) | 5°F to 200°F |
| Temperature Range (C) | -15°C to 93°C |
| Body & Internal Parts | 316 Stainless Steel |
| Weight | 2.310000 |
