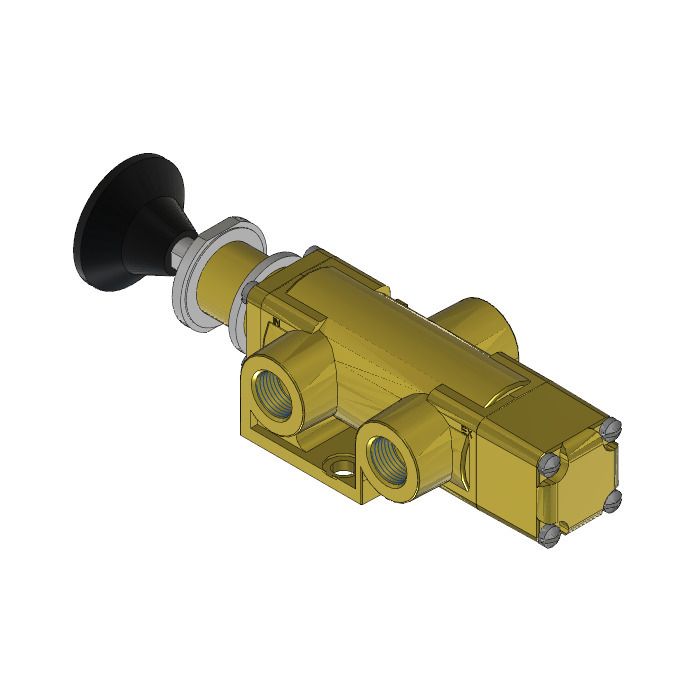

Valve, 3-Way, Brass
SKU:
TIS-3402-S
Lead time: 5
Valve, 3-Way, Brass
Summary
T Series Directional Control Valve
The VERSA 1/2" brass T Series Valves are suited for many low-pressure hydraulic directional control applications. The T Series provides trouble-free performance under the most demanding conditions. The integrity of design makes them adaptable to a maximum number of applications with a minimum of components. The modular approach to valve construction allows valve bodies and actuating devices to be interchanged end for end and valve for valve, allowing for thousands of possible valve variations and enabling the customer to "build" the valve to fit the project's unique specifications.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
100% Leak Tested • 10-Year Warranty
Specifications
| Product Code | Valve, T Series |
|---|---|
| Actuation | Palm Button | Spring Return |
| Function | 3-way, 2-pos, NO |
| Port Size | Body Ported, 3/8" NPT |
| Valve Pressure Range (PSI) | 0-500 psi |
| Valve Pressure Range (BAR) | 0-34.5 bar |
| Primary Flow | 3.4 Cv |
| Media | Hydraulic |
| Temperature Range (F) | 5°F to 131°F |
| Temperature Range (C) | -15°C to 55°C |
| Seal Material | Teflon/Buna |
| Body & Internal Parts | Brass |
