Valve, 3-Way, Brass, 120V60Hz
SKU:
TSG-3721-H-PS-S-XX-A120
Lead time: 10
Valve, 3-Way, Brass, 120V60Hz

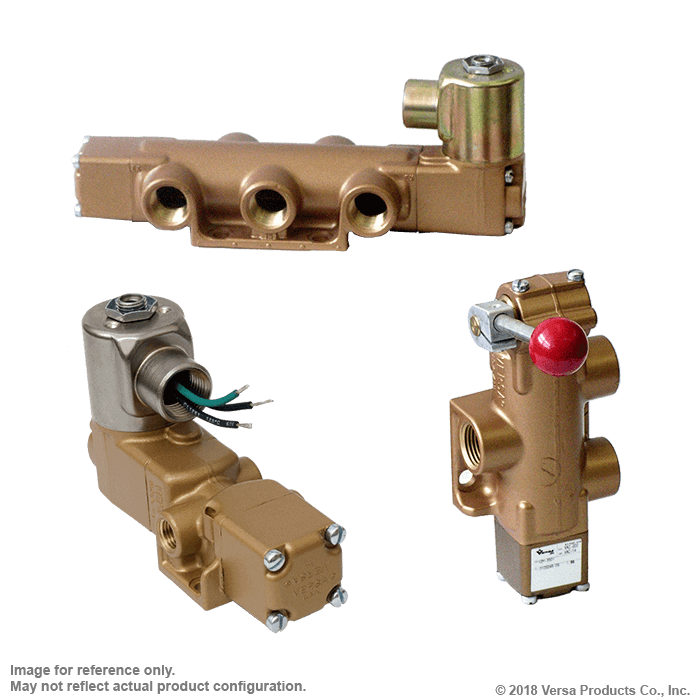

T Series Directional Control Valve
The VERSA 1" brass T Series Valves are suited for many low-pressure hydraulic directional control applications. The T Series provides trouble-free performance under the most demanding conditions. The integrity of design makes them adaptable to a maximum number of applications with a minimum of components. The modular approach to valve construction allows valve bodies and actuating devices to be interchanged end for end and valve for valve, allowing for thousands of possible valve variations and enabling the customer to "build" the valve to fit the project's unique specifications.
Product Features
- Constructed of forged brass for long-lasting, corrosion-resistant strength. Functions without fail when exposed to mud, water, salt, grime, oils and chemicals
Solenoid Features
- Solenoid coil connection: 1/2" NPT male conduit with 24" wires
100% Leak Tested • 10-Year Warranty
| Actuation | Solenoid-Pilot | Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1" NPT |
| Valve Pressure Range (PSI) | 55-175 psi |
| Valve Pressure Range (BAR) | 3.79-12.1 bar |
| Primary Flow | 11.1 Cv |
| Media | Hydraulic |
| Gas Temperature Range (F) | -4°F to 131°F |
| Gas Temperature Range (C) | -20°C to 55°C |
| Dust Temperature Range (F) | -4°F to 131°F |
| Dust Temperature Range (C) | -20°C to 55°C |
| Body & Internal Parts | Brass |
| Weight | 11.330000 |
| Solenoid Description | Hazloc - E Class |
|---|---|
| Voltage | 120 V 60 Hz ±10% (A120) |
| Power | 19.6 VA |
| Inrush Current (mA) | 259 |
| Holding Current (mA) | 163 |
| Resistance Ω | 193 |
| Ingress Protection Rating | NEMA 4X |
| Electrical Protection | Not applicable |
| Area Classification | Cl I, Grps C,D - Cl II, Grps E,F,G - Cl I, Div 2, Grps A,B,C,D - Cl II, Div 2, Grps E,F,G |
| Coil Class | Std |
| T Rating (Gas) | 3C |
| T Rating (Dust) | 3C |
| Solenoid Housing Material | Steel - Plated |
| Solenoid Seal Material | FKM |
| Solenoid Connection | 1/2" NPT male conduit with 24" wires |
| Certification | cULus |
