Valve, 3-Way, SST
SKU:
VSP-3501-316-NGST
Lead time: 10

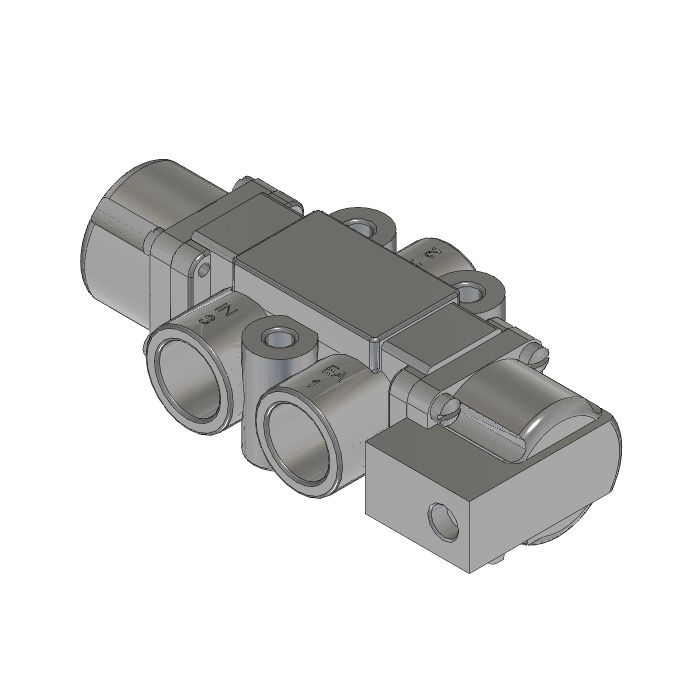

Valve, 3-Way, SST
V-316 Series Directional Control Valve
The 1/2" V-316 Series directional control valve is suited for the most demanding applications. Ruggedly constructed, internally and externally, of stainless steel, these valves can withstand the physical abuse of corrosive environments and controlled media. The modular design concept utilizes three basic sub-assemblies: a body assembly and two actuator assemblies that simplify circuit planning while affording almost unlimited combinations.
Product Features
- Constructed of SAE 316L marine grade stainless steel conforming to NACE standard MR-01-75 suitable for direct exposure to sour environments
- Low-temperature Buna o-ring seals for low-temperature applications down to -40°F
100% Leak Tested • 10-Year Warranty
| Actuation | Pilot | Spring Return |
|---|---|
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/2" NPT |
| Valve Pressure Range (PSI) | VAC-130 psi |
| Valve Pressure Range (BAR) | VAC-8.96 bar |
| Primary Flow | 5.5 Cv |
| Media | Air - Inert Gas, Natural Gas |
| Pilot Pressure Range (PSI) | 55-200 psi |
| Pilot Pressure Range (BAR) | 3.79-13.8 bar |
| Temperature Range (F) | -54°F to 200°F |
| Temperature Range (C) | -48°C to 93°C |
| Body & Internal Parts | 316L Stainless Steel |
| Weight | 2.220000 |
